Power Dynamics, Inc.

Stacked
PJ-8P8C-8-60B5 Shown
	PCB Layout (Top View)
No. of Positions Dimensions A B C 4 30.49 25.40 13.97 8 58.43 53.34 41.91 12 86.37 81.28 69.85 16 114.31 109.22 97.79
PJ-8P8C-8S-6041B5 Shown

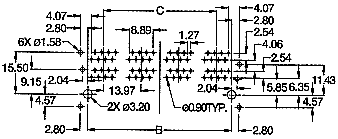

	PCB Layout (Top View)
No. of Positions Dimensions A B C 4 31.24 25.40 13.97 8 59.18 53.34 41.91 12 87.12 81.28 69.85 16 115.06 109.22 97.79
Click here for Specifications & Ordering Code
