Power Dynamics, Inc.

Pin Receptacle, 2.0mm, P.C.B.

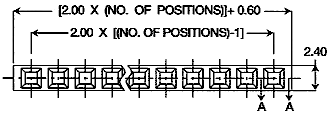

TCS-009-20
(Shown)


Available in 4-40 contacts


Section A-A

PCB Layout

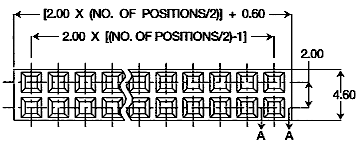

TCSD-020-20
(Shown)


Available in 8-80 contacts


Section A-A

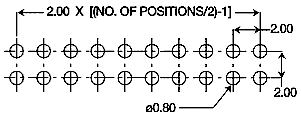

PCB Layout

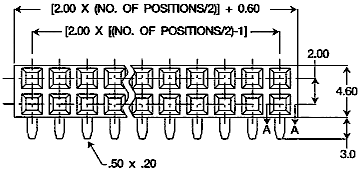

TRSD-020-20
(Shown)


Available in 8-80 contacts


Section A-A

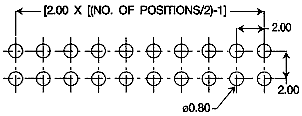

PCB Layout

Click here for Specifications

Specifications subject to change without notice. Dimensions in mm.
