Power Dynamics, Inc.

Specifications for Pin Receptacles
Material and Finish Housing Material: P.B.T.; glass filled, Nylon 6T Rating: UL 94V-0 Contacts Material: Phosphor Bronze Plating: Gold Flash Electrical Specifications Currentn Rating: 1A Insulation Resistance: 1000 Megaohm min. @ 500 VDC Dielectric Withstanding Strength: 500 VDC for 1 minute Contact Resistance: 30 milliohms max @ 6 VDC at .3A Temperature: -55°C to +105°C

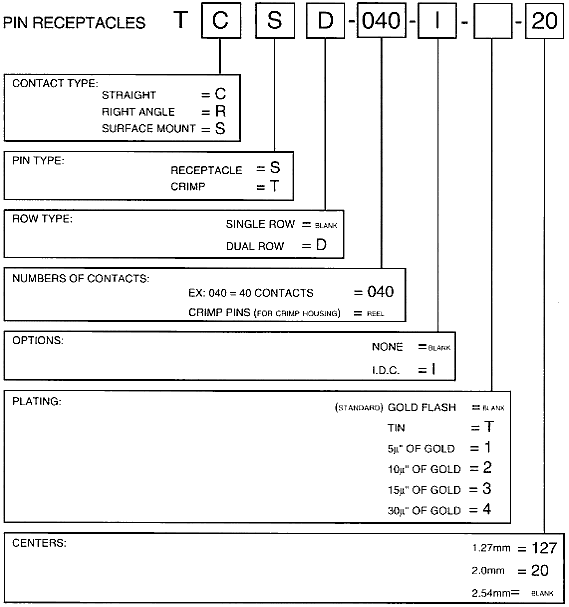

Ordering Code
