Power Dynamics, Inc.

Pin Receptacle, 2.54mm, P.C.B.

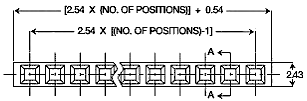

TCS-010 (Shown) Available in 4-40 contacts
	Section A-A
	PCB Layout

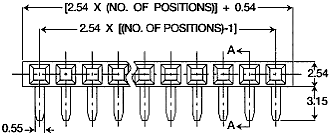

TRS-010 (Shown) Available in 4-40 contacts
	Section A-A
	PCB Layout

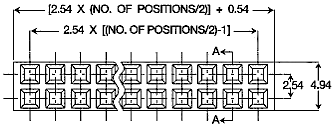

TCSD-016 (Shown) Available in 8-80 contacts
	Section A-A
	PCB Layout

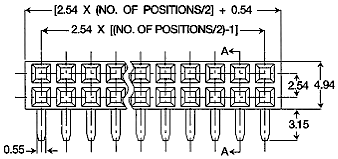

TRSD-020 (Shown) Available in 8-80 contacts
	Section A-A
	PCB Layout
Click here for Specifications
