Power Dynamics, Inc.

Pin Header, Stacked, P.C.B.

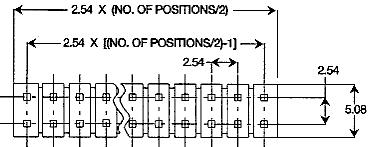

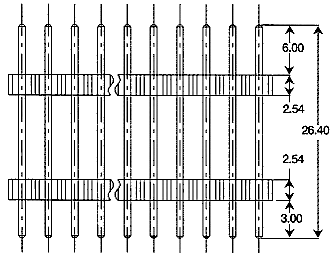

TDMD-008
2.54mm
(Shown)


Available in 4-80 contacts


PCB Layout

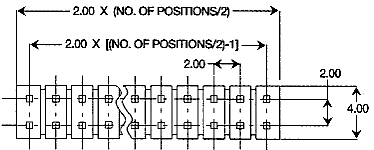

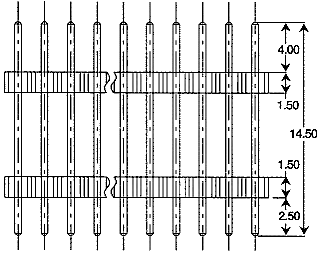

TDMD-032-20
2.0mm
(Shown)


Available in 4-64 contacts

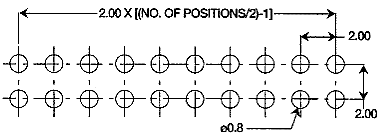

PCB Layout

Click here for Specifications

Specifications subject to change without notice. Dimensions in mm.
