Power Dynamics, Inc.

Specifications for Pin Headers
Material and Finish Housing Material: P.B.T.; Valox 420-SEO, Nylon 6T Rating: UL 94V-0 Contacts Material: Brass Plating: Gold Flash Electrical Specifications Current Rating: 3 A Insulation Resistance: 1000 Megaohm min. Dielectric Withstanding Strength: 1000 VAC rms for 1 minute Temperature: -55°C to +105°C

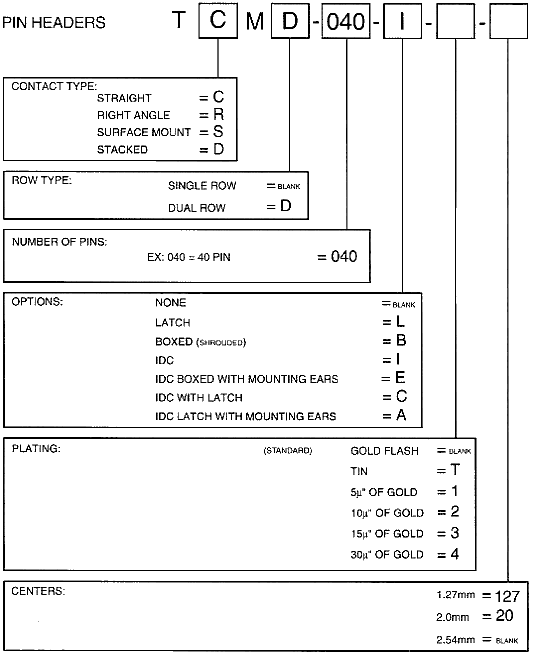

Ordering Code
