Pin Header, 1.27mm, P.C.B., Latched
TCMD-034-L-127 (Shown) Available in 20, 26, 32, 34, 40, 50, 52, 60, 68, 80, and 100 contacts.

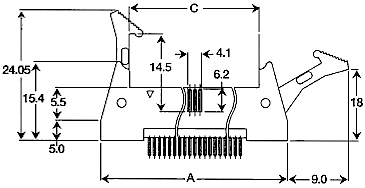

	Section A-A
PCB Layout	PCB Layout
Dimensions   20 26 32 34 40 50 52 60 68 80 100 A 30.95 34.76 38.57 39.84 43.65 50.00 51.27 56.35 61.43 69.05 81.75 B 11.43 15.24 19.05 20.32 24.13 30.48 31.75 36.83 41.91 49.53 62.23 C 18.75 22.56 26.37 27.64 31.45 37.80 39.07 44.15 49.23 56.85 69.55
