Power Dynamics, Inc.

Pin Header, 2.54mm, P.C.B., Boxed

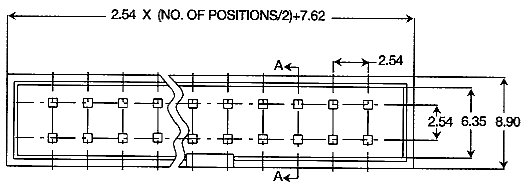

TCMD-034-B
(Shown)


Available in 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, and 64 contacts

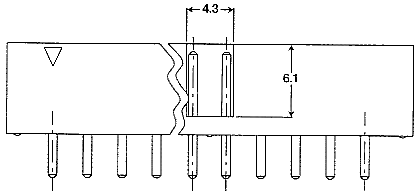

Section A-A

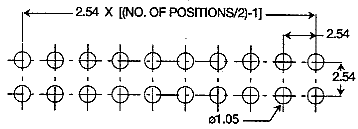

PCB Layout

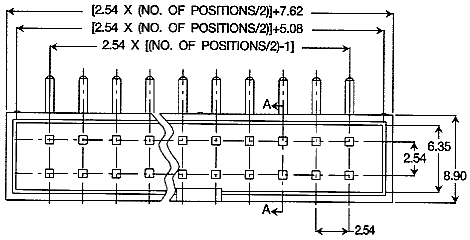

TRMD-034-B
(Shown)


Available in 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, and 64 contacts

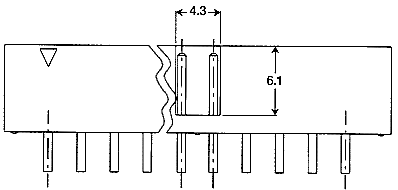

Section A-A

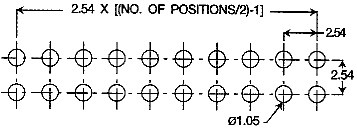

PCB Layout

Click here for Specifications

Specifications subject to change without notice. Dimensions in mm.
