Filtered, Right Angle, P.C.B., 7.2mm Footprint Connectors

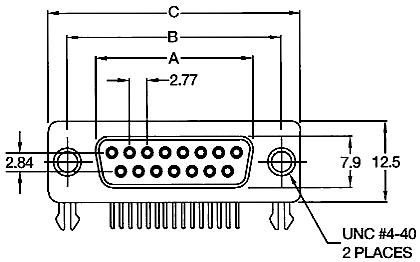

PDF-15R
(Shown)


P.C.B. Layout
Number of Pins
 9152537
A16.3024.6038.3054.80
B25.0033.3047.1063.50
C30.8039.2053.1069.40

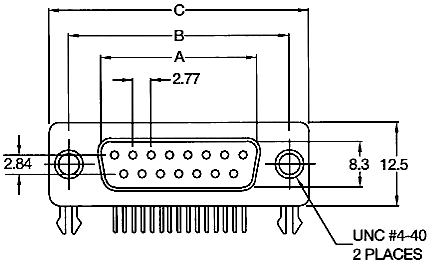

PDF-15S
(Shown)


P.C.B. Layout
Number of Pins
 9152537
A16.9225.2538.9655.42
B25.0033.3047.1063.50
C30.8039.2053.1069.40


Click here for Specifications

Specifications subject to change without notice. Dimensions in mm.
