Power Dynamics, Inc.

Specifications for D-Sub Filtered, Right Angle, P.C.B., 7.2mm Footprint Connectors
Material and Finish Shell Material: Steel Plating: Tin Thickness: Base Copper: 40µ" Tin: 80 - 120µ" Contacts Material: Brass (male) Phosphor Bronze (female) Plating: Gold Plate or Tin/Lead over Nickel Thickness: Gold Flash 40µ" Nickel base 80 - 100µ" Tin/Lead Insulator P.B.T. and glass-fiber reinforced UL 94V-0 Mechanical Mating Force: 9 Pin 15 Pin 25 Pin 37 Pin Minimum: 1.5 kg 2.0 kg 3.0 kg 3.0 kg Maximum: 5.0 kg 7.0 kg 8.0 kg 12.0 kg   Unmating Force: 9 Pin 15 Pin 25 Pin 37 Pin Minimum: 1.5 kg 2.0 kg 3.5 kg 3.5kg Maximum: 5.0 kg 7.0 kg 8.0 kg 12.0 kg Electrical Specifications Rated Current: 3 A Rated Voltage: 300 VDC Insulator Resistance: 3000 Megaohm min. @ 500 VDC Contact Resistance: 15 milliohm max. Dielectric Withstanding Strength: 1000 VAC for 1 minute Temperature: -55°C to +105°C

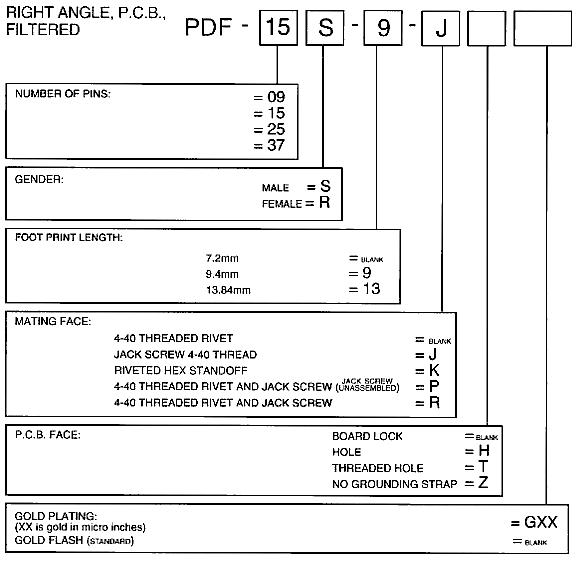

Ordering Code
Attenuation Curves
9 Pin
Equiptment Used: HP-4191A RF Impedance Tester HP-16093A Binding Post Fixture Test Lead Wire Length: 80mm Number of Turns: 1/2 Wire Diameter: 1.0mm
15 Pin
Equipment Used: HP-4191A RF Impedance Tester HP-16093A Binding Post Fixture Test Lead Wire Length: 63mm Number of Turns: 1/2 Wire Diameter: 0.6mm
15 Pin High Density
Equipment Used: HP-4191A RF Impedance Tester HP-16093A Binding Post Fixture Test Lead Wire Length: 80mm Number of Turns: 1/2 Wire Diameter: 1.0mm
25 Pin
Equipment Used: HP-4191A RF Impedance Tester HP-16093A Binding Post Fixture Test Lead Wire Length: 80mm Number of Turns: 1/2 Wire Diameter: 0.4mm
