Power Dynamics, Inc.

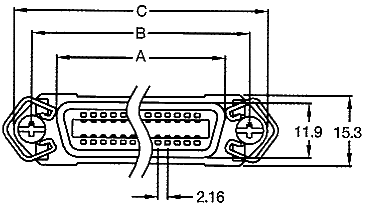

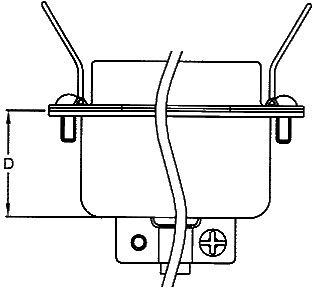

PCI-36RS-SB-L (Shown) Straight, Solder Cups, Shielded
	Position A B C D 14 25.20 36.00 43.90 21.70 24 36.00 46.80 54.70 21.20 36 48.90 59.70 67.70 23.00 50 64.10 74.90 82.80 25.00
Click Here for Specifications.

Specifications subject to change without notice. Dimensions in mm.
