Specifications
Material and Finish: Shell: Material: Steel Plating: Tin Contacts: Material: Phosphor Bronze Thickness: Gold Flash over Nickel Insulator: P.B.T. and Glass-fiber reinforced UL 94V-0 Electrical Specifications: Rated Current: 1A max. Insulation Resistance: 1000 Megaohm min. @ 500 VDC Dielectric Withstanding Strength:     1000 VAC for 1 minute Temperature: -55°C to 105°C

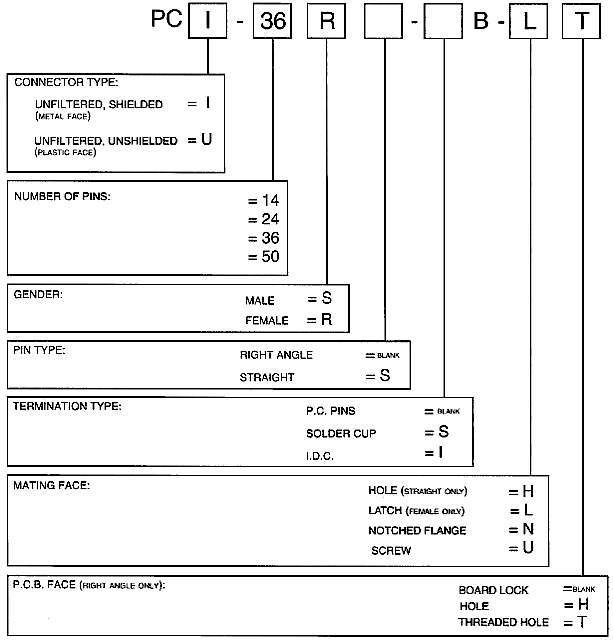

Example & Ordering Code
Specifications subject to change without notice. Dimensions in mm.
