Power Dynamics, Inc.

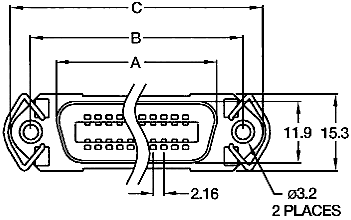

PCI-36RS-B-L (Shown) Straight, P.C. Pin, Shielded
	Position A B C D 14 25.20 36.00 43.90 22.70 24 36.00 46.80 54.70 33.50 36 48.90 59.70 67.70 46.60 50 64.10 74.90 82.80 61.70

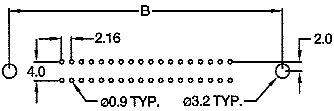

PCB Layout (Top View)	Click Here for Specifications.

Specifications subject to change without notice. Dimensions in mm.
