BlockMaster
Specifications
Features:
- CIM Ejector headers for use with CIF and CVF plugs.
- The Ejector eases removal of longer position plugs or plugs in difficult to reach places.
- Safer than pulling directly on the plug.
- Operated by pressing both red Ejector levers simultaneously.
- 2 to 21 position single mold (5/5.08).

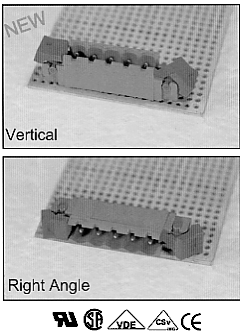

- 2 styles available.
- Key coding capable.
- Housing is resistant to chlorinated solvents, with no dioxin or detrimental to health halogens.
- Every position of this product is mechanically and electrically tested during assembly to ensure a 100% defect free product.
- Minimum 5 microns of tin plating on terminal for easy soldering.
|
CIM-E Series
|
| Electrical |
|---|
| Current (5/5.08): | 12A @300V |
| Pin dimension: | 1mm x 1mm |
| CR: | <15m ohms |
| IR: | >109 ohms (500V DC) |
| Operating temp: | -40°C to+110°C |
| PCB holes: | min 1.4mm |
| PCB thickness: | max 2.4mm |
| Climactic category: | 40/110/21 Acc. to IEC 68-1 |
| Insertion force: | max 3 N |
| Disconnecting force: | min 1.5N |
| Materials |
|---|
| Housing: | Polyamide 6, 6 (UL94V-0) |
| Terminal pin: | Bronze, Tin plated |
| Colors Available: | Green |
Marking
Consult Beckwith Electronics for marking options.
Dimensions
n=number of poles
L=(n-1) x 5 (for 5mm spacing)
L=(n-1) x 5.08 (for 5.08mm spacing)Also available in 10 and 10.16mm centers. |  |
Part Numbers
CIM020E1
CIM020E5
CIM029E1
CIM029E5
CIM030E1
CIM030E5
CIM039E1
CIM039E5
CIM040E1
CIM040E5
CIM049E1
CIM049E5
CIM050E1
CIM050E5
CIM059E1
CIM059E5
CIM060E1
CIM060E5
CIM069E1
CIM069E5
CIM070E1
CIM070E5
CIM079E1
CIM079E5
CIM080E1
CIM080E5
CIM089E1
CIM089E5
CIM090E1
CIM090E5
CIM099E1
CIM099E5
CIM100E1
CIM100E5
CIM109E1
CIM109E5
CIM110E1
CIM110E5
CIM119E1
CIM119E5
CIM120E1
CIM120E5
CIM129E1
CIM129E5
CIM130E1
CIM130E5
CIM139E1
CIM139E5
CIM140E1
CIM140E5
CIM149E1
CIM149E5
CIM150E1
CIM150E5
CIM159E1
CIM159E5
CIM160E1
CIM160E5
CIM169E1
CIM169E5
CIM170E1
CIM170E5
CIM179E1
CIM179E5
CIM180E1
CIM180E5
CIM189E1
CIM189E5
CIM190E1
CIM190E5
CIM199E1
CIM199E5
CIM200E1
CIM200E5
CIM209E1
CIM209E5
CIM210E1
CIM210E5
CIM219E1
CIM219E5
