REVERSIBLE PERMANENT MAGNET SYNCHRONOUS
MOTORS:T and TA Series |

T and TA Series motors feature a rugged die cast housing. Motors can be furnished with either standard or high torque rotors. Sleeve bearings are standard.

T Series motors have 24 poles. When operated at 60 Hz, rotor speed is 300 RPM. TA Series motors have 20 poles. These motors provide a 300 RPM rotor speed when operated at 50 Hz and a 360 RPM rotor speed when operated at 60 Hz.

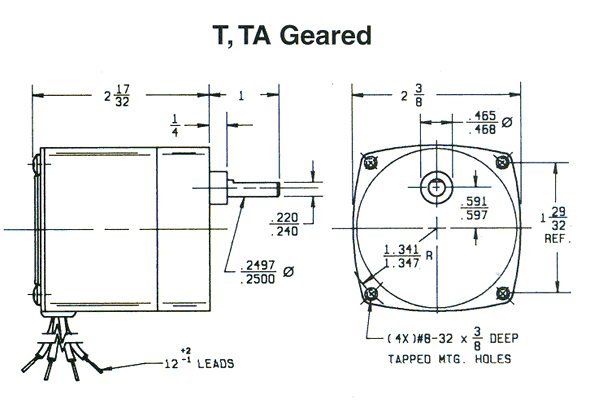

**Geared T Series Motors**

Geared T Series motors are available in a wide range of speeds. The gear trains are the most rugged of the Hurst permanent magnet motors with a maximum recommended loading of 250 oz-in at 1 RPM. Gear trains are engineered to provide long service life in a wide variety of applications. Motors listed are 115 VAC at 60 Hz and require a capacitor.
Capacitors are ** not** supplied with the TA Series motors.
Click here for gear train construction details.

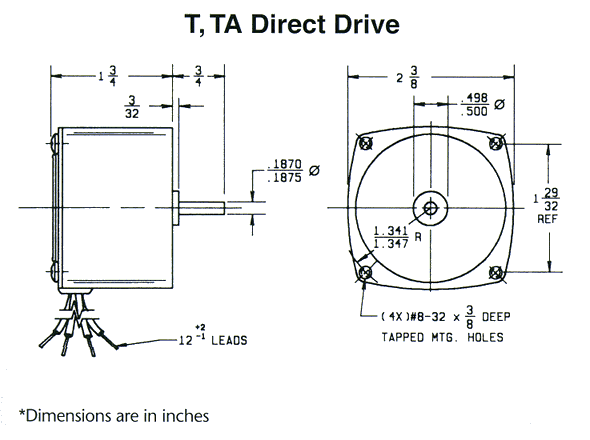

Direct Drive
Reversible AC Synchronous Motors | |||||||
---|---|---|---|---|---|---|---|

Model | Part Number |
Speed @ Output Shaft (rpm) |
Rated Torque (oz-in) |
Input Power (watts) |
Capacitor Value (mfd) |
Full
Load Temp. Rise ( ^{o}C) |
Weight (oz) |

T | 2601-001 | 300 | 8.5 | 7 | .68 | 27 | 20 |

T |
2609-001 |
300 | 10.25 | 9.5 | .85 | 38 | 20 |

TA | 2601-003 | 360 | 6.6 | 7.5 | .75 | 33 | 20 |

T | 2601-004 | 300* | 6.6 | 6.0 | .75 | 32 | 20 |

Geared Synchronous Motors | |||||||
---|---|---|---|---|---|---|---|

Model | Part Number |
Speed @ Output Shaft (rpm) |
Rated Torque (oz-in) |
Input Power (watts) |
Capacitor Value (mfd) |
Full Load Temp. Rise ( ^{o}C) |
Weight (oz) |

T | 2602-001 | 1 | 250* | 7 | .68 | 27 | 27 |

T | 2602-004 | 2 | 233* | 7 | .68 | 27 | 27 |

T | 2602-005 | 3 | 224* | 7 | .68 | 27 | 27 |

T | 2602-012 | 4 | 218* | 7 | .68 | 27 | 27 |

T | 2602-013 | 6 | 210* | 7 | .68 | 27 | 27 |

T | 2602-006 | 10 | 180* | 7 | .68 | 27 | 27 |

T | 2602-007 | 15 | 120 | 7 | .68 | 27 | 27 |

T | 2602-008 | 25 | 77 | 7 | .68 | 27 | 27 |

T | 2602-014 | 30 | 64 | 7 | .68 | 27 | 27 |

T | 2602-009 | 60 | 32 | 7 | .68 | 27 | 27 |

T | 2602-010 | 100 | 19 | 7 | .68 | 27 | 27 |

T | 2602-015 | 120 | 16 | 7 | .68 | 27 | 27 |

T | 2602-011 | 150 | 13 | 7 | .68 | 27 | 27 |

T |
2611-005 |
30 | 79 | 9.5 | .85 | 38 | 27 |

T |
2611-007Discontinued for reference only |
60 | 39.5 | 9.5 | .85 | 38 | 27 |

T |
2611-010 |
120 | 19.75 | 9.5 | .85 | 38 | 27 |
