LOW COST, REVERSIBLE PERMANENT MAGNET SYNCHRONOUS MOTORS: SC Series |
New SC Series motors, both direct drive and geared versions, have excellent size/torque ratios. All are designed for dependable service in applications where space is limited.

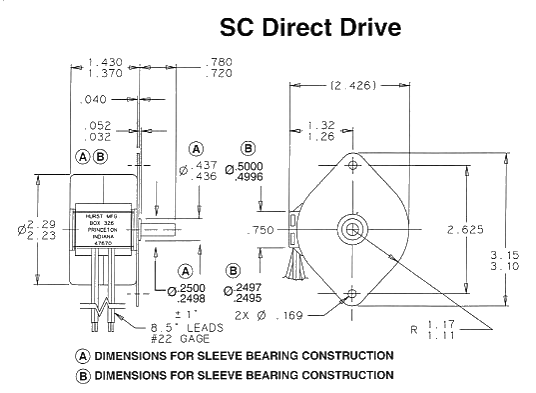

Compact direct drive motors - only 1.5" long - have torque ratings from 8.75 to 11.5 oz-in. Dual sleeve or ball bearings may be specified as well as a double ended shaft.

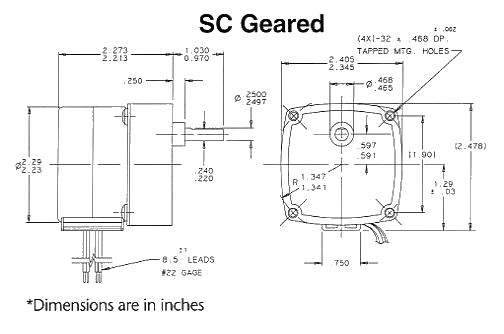

Standard geared SC Series models are available with output shaft speeds from 15 to 120 RPM. Other shaft speeds are available. Motors listed are 115 VAC at 60 Hz and require a capacitor. Click here for gear train construction details.
| Model | Part Number |
Stock Item |
Speed @ Output Shaft (rpm) |
Rated Torque (oz-in) |
Input Power (watts) |
Capacitor Value (mfd) |
Full Load Temp. Rise (oC) |
Weight (oz) |
Shaft Bearing |
|---|---|---|---|---|---|---|---|---|---|
| SC | 4401-001 | 300 | 8.75 | 7 | .68 | 35 | 10 | SLEEVE | |
| SC | 4405-001 | 300 | 9.2 | 7 | .68 | 35 | 10 | BALL | |
| SC | 4407-001 | 300 | 11.0 | 9 | .85 | 40 | 10 | SLEEVE | |
| SC | 4411-001 | 300 | 11.5 | 9 | .85 | 40 | 10 | BALL |
| Model | Part Number |
Stock Item |
Speed @ Output Shaft (rpm) |
Rated Torque (oz-in) |
Input Power (watts) |
Capacitor Value (mfd) |
Full Load Temp. Rise (oC) | Weight (oz) |
|---|---|---|---|---|---|---|---|---|
| SC | 4402-012 | 13 pcs | 15 | 116* | 7 | .68 | 35 | 18 |
| SC | 4402-013 | 20 | 99 | 7 | .68 | 35 | 18 | |
| SC | 4402-015 | 30 | 66 | 7 | .68 | 35 | 18 | |
| SC | 4402-017 | 60 | 33 | 7 | .68 | 35 | 18 | |
| SC | 4402-020 | 120 | 16.5 | 7 | .68 | 35 | 18 | |
| SC | 4402-003 | 30 | 82.5 | 9 | .85 | 40 | 18 | |
| SC | 4408-004 | 60 | 41 | 9 | .85 | 40 | 18 | |
| SC | 4408-007 | 120 | 20.5 | 9 | .85 | 40 | 18 |
