Hurst Manufacturing


LSD & LSG Series Permanent Magnet Stepping Motors STEPPING MOTORS:
LSD & LSG Series

(Replaces AS & ABS Series)
PERMANENT MAGNET STEPPING MOTORS

Unlike many motors of similar size and appearance, LSD & LSG Series motors are designed for long life at rated loads. Geared models feature a die cast gear housing, hardened steel gears and pinions running on ground, hardened steel studs. No plastic or fiber parts are used.Click here for gear train construction details. LSD & LSG motors are widely used in precision instruments, medical equipment, computer peripherals and other applications requiring high quality components.

NOTES
1. Mounting holes and shaft distance fit standard pear-shaped gear cup motors.

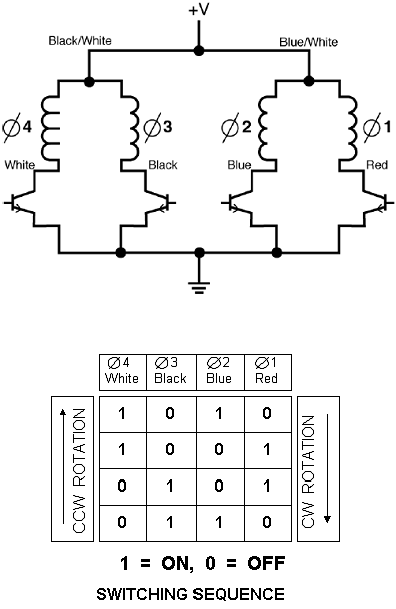

2. Standard lead wire configuration is 6 leads.Click here for standard lead wire color code and switching sequence.
3. LSD & LSG Series motors can be driven with theHurst Stepping Motor Controllers.

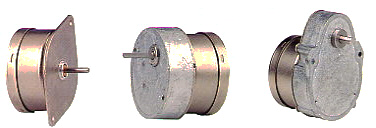

4. Motor is also available with a round gear housing as shown in above picture.

Direct Drive Stepping Motors
Part
Number		 Voltage
VDC		 Resistance
Ohms/Phase		 Inductance
m H/Phase		 Hold
Current
A		 Total
Watts
Input
W		 Minimum
Holding
Torque
gf-cm
(oz-in)		 Pull-Out
Torque
@175p/s
gf-cm
(oz-in)		 Detent
Torque
gf-cm
(oz-in)		 Rotor
Inertia
gf-cm2
(oz-in2)		 Weight
g
(oz)		 Length
(L)
mm
(in)
LSD35005D 5 16.0 6.9 0.625 3.2 420
(5.8)		 151
(2.1)		 130
(1.8)		 6.8
(0.372)		 82
(2.9)		 22
(.866)
LSD35006D 6 17.5 9.0 0.686 4.2 430
(6.0)		 151
(2.1)		 130
(1.8)		 6.8
(0.372)		 82
(2.9)		 22
(.866)
LSD35012D 12 65.0 27.0 0.369 4.5 420
(6.3)		 151
(2.1)		 130
(1.8)		 6.8
(0.372)		 82
(2.9)		 22
(.866)
LSD35024D 24 280.0 215.0 0.172 4.2 430
(6.0)		 151
(2.1)		 130
(1.8)		 6.8
(0.372)		 82
(2.9)		 22
(.866)

LSD42005D 5 9 5.8 1.110 5.5 576
(8.0)		 259
(3.6)		 130
(1.8)		 7.2
(.0394)		 135
(4.8)		 22
(.866)
LSD42006D 6 12 9.5 1.000 6 576
(8.0)		 259
(3.6)		 130
(1.8)		 7.2
(.0394)		 135
(4.8)		 22
(.866)
LSD42012D 12 50 33 0.483 5.8 576
(8.0)		 259
(3.6)		 130
(1.8)		 7.2
(.0394)		 135
(4.8)		 22
(.866)
LSD42024D 24 190 215 0.253 6.1 576
(8.0)		 259
(3.6)		 130
(1.8)		 7.2
(.0394)		 135
(4.8)		 22
(.866)

Geared Stepping Motors

use the above table for motor data (LSG35012 E02P = LSD35012 D)

For other than standard voltages listed below, Contact Beckwith Electronics

LSG35 Motors are 4.5 Watts, 65 Ohms

Part
Number		 Similar
Model
AS or ABS		 Step
Angle
(degrees)		 Steps
Per
Revolution		 Reduction Nominal
Voltage
(VDC)		 Minimum
Holding
Torque
(oz-in)		 Pull-Out
Torque
@175p/s
(oz-in)		 Detent
Torque
(oz-in)		 Rotor
Inertia
(oz-in)		 Weight
(oz)		 Length
(L)
(in)
LSG35012E02P   4.500 80 1 2/3 12 15 2 4.3 0.0372 8.6 1.55
LSG35012E04P   3.750 96 2 12 18 3 5.1 0.0372 8.6 1.55
LSG35012E06P 3004-049 3.600 100 2 1/12 12 19 3 5.4 0.0372 8.6 1.55
LSG35012E08P   3.000 120 2 1/2 12 22 4 6.4 0.0372 8.6 1.55
LSG35012E10P   2.500 144 3 12 27 4 7.7 0.0372 8.6 1.55
LSG35012E12P   2.250 160 3 1/3 12 30 5 8.6 0.0372 8.6 1.55
LSG35012E16P   1.875 192 4 12 36 6 10.3 0.0372 8.6 1.55
LSG35012E18P 3004-008 1.800 200 4 1/6 12 37 6 10.7 0.0372 8.6 1.55
LSG35012E20P   1.500 240 5 12 45 7 12.9 0.0372 8.6 1.55
LSG35012E22P   1.200 300 6 1/4 12 56 9 16.1 0.0372 8.6 1.55
LSG35012E24P   1.000 360 7 1/2 12 67 11 19.3 0.0372 8.6 1.55
LSG35012E28P   0.900 400 8 1/3 12 74 12 21.4 0.0372 8.6 1.55
LSG35012E30P 3004-007 0.750 480 10 12 89 15 25.7 0.0372 8.6 1.55
LSG35012E34P   0.625 576 12 12 107 18 30.9 0.0372 8.6 1.55
LSG35012E36P   0.600 600 12 1/2 12 112 18 32.1 0.0372 8.6 1.55
LSG35012E38P   0.563 640 13 1/3 12 119 20 34.3 0.0372 8.6 1.55
LSG35012E40P   0.500 720 15 12 134 22 38.6 0.0372 8.6 1.55
LSG35012E42P   0.469 768 16 12 143 24 41.1 0.0372 8.6 1.55
LSG35012E44P   0.450 800 16 2/3 12 149 25 42.9 0.0372 8.6 1.55
LSG35012F46P   0.375 960 20 12 150 27 56.3 0.0372 8.6 1.55
LSG35012F48P   0.360 1000 20 5/6 12 150 28 58.6 0.0372 8.6 1.55
LSG35012F50P   0.300 1200 25 12 150 34 70.3 0.0372 8.6 1.55
LSG35012F52P 3004-004 0.250 1440 30 12 150 40 84.4 0.0372 8.6 1.55
LSG35012F54P   0.240 1500 31 1/4 12 150 42 87.9 0.0372 8.6 1.55
LSG35012F56P   0.225 1600 33 1/3 12 150 45 93.8 0.0372 8.6 1.55
LSG35012F58P   0.200 1800 37 1/2 12 150 50 105.5 0.0372 8.6 1.55
LSG35012F60P   0.188 1920 40 12 150 54 112.5 0.0372 8.6 1.55
LSG35012F62P   0.180 2000 41 2/3 12 150 56 117.2 0.0372 8.6 1.55
LSG35012F64P   0.150 2400 50 12 150 67 140.6 0.0372 8.6 1.55
LSG35012F66P   0.139 2592 54 12 150 73 150.0 0.0372 8.6 1.55
LSG35012F68P   0.133 2700 56 1/4 12 150 76 150.0 0.0372 8.6 1.55
LSG35012F70P   0.125 2880 60 12 150 81 150.0 0.0372 8.6 1.55
LSG35012F72P   0.120 3000 62 1/2 12 150 84 150.0 0.0372 8.6 1.55
LSG35012F74P   0.113 3200 66 2/3 12 150 90 150.0 0.0372 8.6 1.55
LSG35012F76P 3004-003 0.100 3600 75 12 150 101 150.0 0.0372 8.6 1.55
LSG35012F78P   0.094 3840 80 12 150 108 150.0 0.0372 8.6 1.55
LSG35012F80P   0.090 4000 83 1/3 12 150 112 150.0 0.0372 8.6 1.55
LSG35012E82P   0.075 4800 100 12 150 109 150.0 0.0372 8.6 1.55
LSG35012E84P   0.067 5400 112 1/2 12 150 123 150.0 0.0372 8.6 1.55
LSG35012E86P   0.063 5760 120 12 150 131 150.0 0.0372 8.6 1.55
LSG35012E88P   0.060 6000 125 12 150 137 150.0 0.0372 8.6 1.55
LSG35012E90P   0.050 7200 150 12 150 150 150.0 0.0372 8.6 1.55
LSG35012E96P   0.030 12000 250 12 150 150 150.0 0.0372 8.6 1.55
LSG35012E98P 3004-001 0.025 14400 300 12 150 150 150.0 0.0372 8.6 1.55
LSG35024E98P 3004-052 0.025 14400 300 24 150 150 150.0 0.0372 8.6 1.55
LSG42024F52P 3015-011 0.250 1440 30 24 150 40 84.4 0.0372 8.6 1.55

LSG42012E02P   4.500 80 1 2/3 12 19 4 4.3 0.0394 10.2 1.55
LSG42012E04P   3.750 96 2 12 23 5 5.1 0.0394 10.2 1.55
LSG42012E06P 3008-008 3.600 100 2 1/12 12 24 5 5.4 0.0394 10.2 1.55
LSG42012E08P   3.000 120 2 1/2 12 29 6 6.4 0.0394 10.2 1.55
LSG42012E10P   2.500 144 3 12 34 8 7.7 0.0394 10.2 1.55
LSG42012E12P   2.250 160 3 1/3 12 38 8 8.6 0.0394 10.2 1.55
LSG42012E16P   1.875 192 4 12 46 10 10.3 0.0394 10.2 1.55
LSG42012E18P   1.800 200 4 1/6 12 48 11 10.7 0.0394 10.2 1.55
LSG42012E20P   1.500 240 5 12 57 13 12.9 0.0394 10.2 1.55
LSG42012E22P 3008-027 1.200 300 6 1/4 12 71 16 16.1 0.0394 10.2 1.55
LSG42012E24P 3008-006 1.000 360 7 1/2 12 86 19 19.3 0.0394 10.2 1.55
LSG42012E28P   0.900 400 8 1/3 12 95 21 21.4 0.0394 10.2 1.55
LSG42012E30P 3008-005 0.750 480 10 12 114 25 25.7 0.0394 10.2 1.55
LSG42012E34P   0.625 576 12 12 137 30 30.9 0.0394 10.2 1.55
LSG42012E36P   0.600 600 12 1/2 12 143 32 32.1 0.0394 10.2 1.55
LSG42012E38P   0.563 640 13 1/3 12 150 34 34.3 0.0394 10.2 1.55
LSG42012E40P 3008-004 0.500 720 15 12 150 38 38.6 0.0394 10.2 1.55
LSG42012E42P   0.469 768 16 12 150 40 41.1 0.0394 10.2 1.55
LSG42012E44P   0.450 800 16 2/3 12 150 42 42.9 0.0394 10.2 1.55
LSG42012F46P   0.375 960 20 12 150 46 56.3 0.0394 10.2 1.55
LSG42012F48P   0.360 1000 20 5/6 12 150 48 58.6 0.0394 10.2 1.55
LSG42012F50P   0.300 1200 25 12 150 58 70.3 0.0394 10.2 1.55
LSG42012F52P   0.250 1440 30 12 150 69 84.4 0.0394 10.2 1.55
LSG42012F54P   0.240 1500 31 1/4 12 150 72 87.9 0.0394 10.2 1.55
LSG42012F56P   0.225 1600 33 1/3 12 150 77 93.8 0.0394 10.2 1.55
LSG42012F58P 3008-003 0.200 1800 37 1/2 12 150 86 105.5 0.0394 10.2 1.55
LSG42012F60P   0.188 1920 40 12 150 92 112.5 0.0394 10.2 1.55
LSG42012F62P   0.180 2000 41 2/3 12 150 96 117.2 0.0394 10.2 1.55
LSG42012F64P   0.150 2400 50 12 150 115 140.6 0.0394 10.2 1.55
LSG42012F66P   0.139 2592 54 12 150 124 150.0 0.0394 10.2 1.55
LSG42012F68P   0.133 2700 56 1/4 12 150 130 150.0 0.0394 10.2 1.55
LSG42012F70P   0.125 2880 60 12 150 138 150.0 0.0394 10.2 1.55
LSG42012F72P   0.120 3000 62 1/2 12 150 144 150.0 0.0394 10.2 1.55
LSG42012F74P   0.113 3200 66 2/3 12 150 150 150.0 0.0394 10.2 1.55
LSG42012F76P 3008-002 0.100 3600 75 12 150 150 150.0 0.0394 10.2 1.55
LSG42012F78P   0.094 3840 80 12 150 150 150.0 0.0394 10.2 1.55
LSG42012F80P   0.090 4000 83 1/3 12 150 150 150.0 0.0394 10.2 1.55
LSG42012E82P   0.075 4800 100 12 150 150 150.0 0.0394 10.2 1.55
LSG42012E84P   0.067 5400 112 1/2 12 150 150 150.0 0.0394 10.2 1.55
LSG42012E86P   0.063 5760 120 12 150 150 150.0 0.0394 10.2 1.55
LSG42012E88P   0.060 6000 125 12 150 150 150.0 0.0394 10.2 1.55
LSG42012E90P   0.050 7200 150 12 150 150 150.0 0.0394 10.2 1.55
LSG42012E96P   0.030 12000 250 12 150 150 150.0 0.0394 10.2 1.55
LSG42012E98P   0.025 14400 300 12 150 150 150.0 0.0394 10.2 1.55
LSG42024F76P 3008-020 0.100 3600 75 24 150 150 150.0 0.0394 10.2 1.55

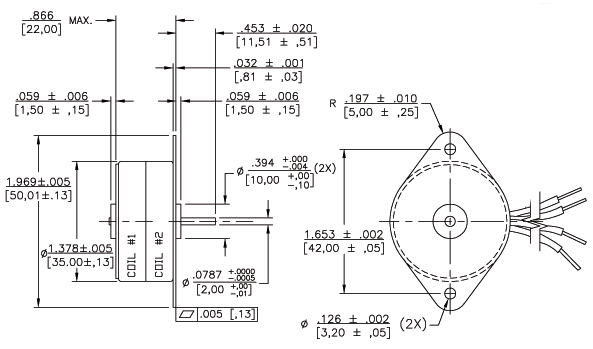

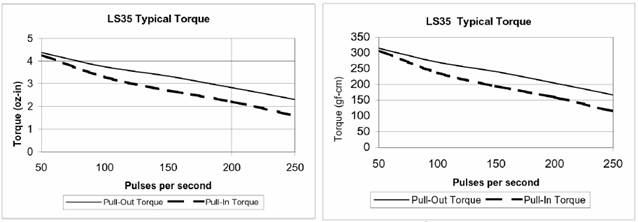

LSD35

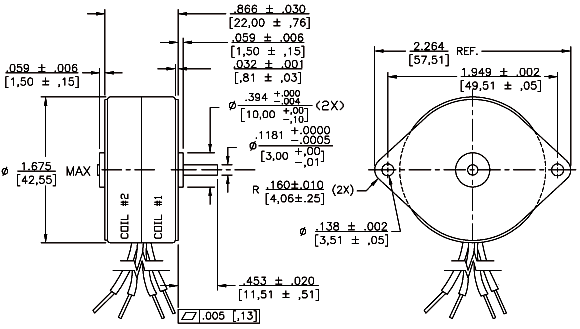

LSD42

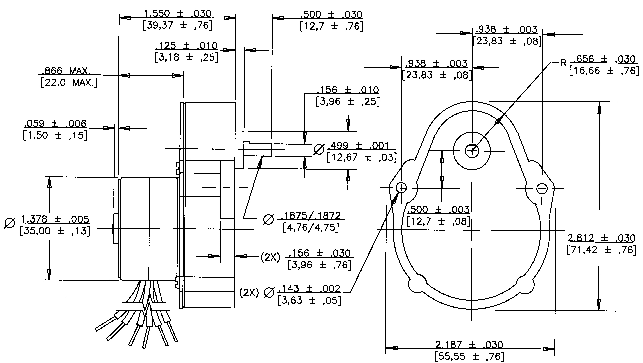

LSG35

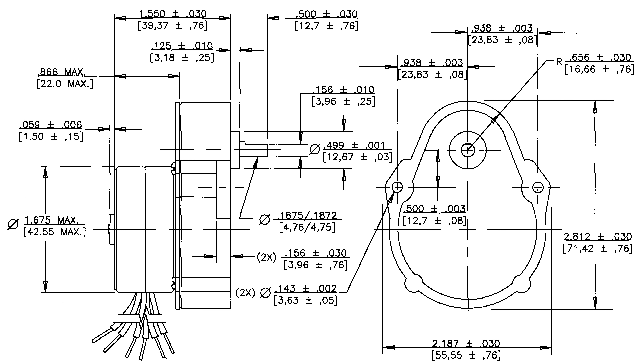

LSG42
