Hurst Manufacturing


TS Series Compact Direct Drive or Geared, Permanent Magnet Stepping Motors COMPACT STEPPING MOTORS:
TS Series
COMPACT DIRECT DRIVE OR GEARED, PERMANENT MAGNET STEPPING MOTORS

Compact, rugged and efficient, TS Series motors are designed for heavy-duty applications. Geared models offer hardened steel gears and pinions with dynamic torque ratings up to 250 ounce-inches. Direct drive models have a 7.5° step angle and both geared and direct drive motors have machined die cast housings. Sleeve bearings are standard.

Output shaft step angles as small as .025° at a reduction of 300 are available.

NOTE
1. Standard TS motors are supplied with 4-phase, bifilar windings (6 lead wires) for 6, 12, 24 VDC operation. Click here for standard lead wire color code and switching sequence.
2. TS Series motors can be driven with the Hurst Stepping Motor Controllers .

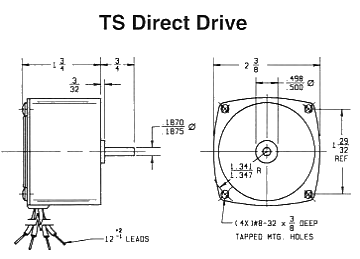

Direct Drive 7.5o or 15o Step Angle DC Stepping Motors
Model Part
Number		 Step
Angle
(degrees)		 Steps
Per
Revolution		 2-Phase
Holding
Torque
(oz-in)		 Rated
Torque
@ 4-5 p/s
(oz-in)		 Input
Power
(watts)		 Nominal
Voltage
(volts)		 Winding
Resistance
(ohms)		 Rotor
Inertia
(oz-in)		 Temperature
Rise
(oC)		 Weight
(oz)
TS 2605-001 7.5 48 14 8.5 8.5 12 31 0.34 40 20
TS 2610-002 7.5 48 15.5 10.4 8.5 12 31 0.34 40 20
TS 2605-002 7.5 48 14 8.5 8.5 6 9.5 0.34 52 20
TS 2605-004 7.5 48 14 8.5 8.5 24 135 0.34 45 20
* Measured with no heat sink, motor in a holding mode with 2 phases energized.

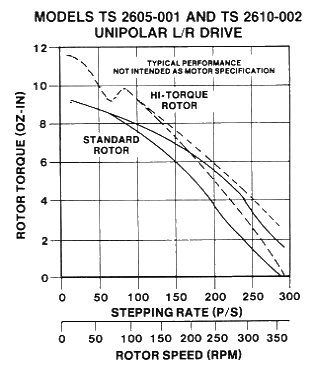

Bold face listings indicate Hi-Torque rotor.

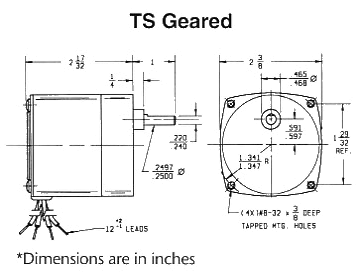

Geared Stepping Motors
Model Part
Number		 Reduction Step
Angle
(degrees)		 Steps
Per
Revolution		 Output
Speed
@ 200 p/s
(rpm)		 Typical
Torque
@ 200 p/s
(oz-in)*		 Input
Power
(watts)		 Winding
Resistance
(ohms)		 Weight
(oz)
TS 2606-001 300 0.025 14,400 .83 250** 8.5 31 27
TS 2606-002 150 0.05 7,200 1.67 250** 8.5 31 27
TS 2606-003 75 0.1 3,600 3.3 244 8.5 31 27
TS 2606-004 30 0.25 1,400 8.3 105 8.5 31 27
TS 2606-005 20 0.375 960 12.5 70 8.5 31 27
TS 2606-006 12 1/2 0.6 600 20 44 8.5 31 27
TS 2606-007 10 0.75 480 25 35 8.5 31 27
TS 2606-008 4 1/6 1.8 200 60 15.6 8.5 31 27
TS 2606-009 2 3.75 96 125 7.5 8.5 31 27
*Torque measured at normal voltage with L/R drive.
**Maximum gear train loading.
