Hurst BLDC 4817-003 Compact Size Brushless DC Motor BRUSHLESS DC MOTORS:
BLDC Series

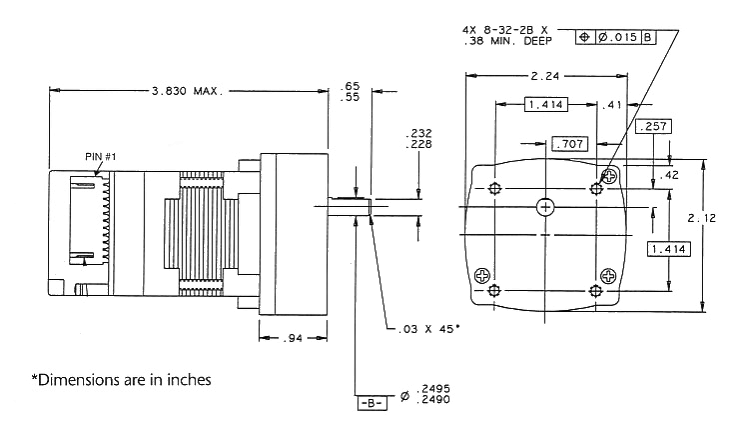

MODEL 4817-003 SPECIFICATIONS
Discontinued for reference only



Geared Brushless DC Motor

A gearbox designed specifically for our smallest brushless DC motor provides a very compact package that produces a rated torque of 175 oz-in and a peak torque of 500 oz-in.

Gears are hobbed to AGMA 7 quality. Pinions and gear teeth are case hardened for wear resistance and ground steel shafts rotate in sintered bearings. The output shaft is supported by ball bearings. Both motor and gearhead are designed for outstanding service.

Gearboxes are available in a wide variety of sizes and ratios for all Hurst brushless DC motors. Consult your sales person for more information.

This size motor is also available with an encoder. BLDC 4817-004

Brushless DC Motors: BLDC Series

Motor Characteristics*
BLDC
Model
Number
Cont.
Torque
Oz-In
(Nom)
Peak
Torque
Oz-In
(Max)
Rotor
Inertia
Oz-In-Sec2
(+10%)
Therm
Resistance
C/Watt
(+10%)
Therm
Time
Constant
min(nom)
Max
Allowable
Winding
Temp C
Winding
Type
Poles Radial
Load
Oz(max)
Axial
Load
Oz(max)
Weight
Oz(nom)
4817-003 175 500 .0006 10 10 120 3 8 80 48 ??


Gear RatioSpeed No Load RPMRated Speed RPM
30.48:1175100


Winding Characteristics*

BLDC
Model
Number
Input
Voltage
VDC(max)
Ke
VOLTS/krpm
(+10%)
Kt
Oz-In/AMP
(+10%)
Phase
Resistance
OHMS
(+10%)
Phase
Induction
MIL-H
(+10%)
Cont.
Current
amp
Peak
Current
amp
4817-003 40 6.14 8.3 5.7 5.7 .84 4.8
*Motor mounted on a 4" x 4" x 1/8" Steel Plate.
Note: Operating volatages of 12 to 40 volts and/or other speed ranges and torques are available.

Pin #Function
1Winding Phase A
2Winding Phase B
3Winding Phase C
4Motor Case Ground
5NC
6NC
7Commutator S2 Output
8Commutator S3 Output
9Commutator S1 Output
10NC
11NC
not available from Hurst
