FEATURES:

Complete versatility for programming within the unit itself...thus eliminating the need for dip switches in many situations.

Available pre-programmed from Aries, or do it yourself using Aries' hand tool No. T-680. Consult Data sheet No. 22002 for programming tool information.

Available with plain (solid) or "top-slot" press-on covers. Plain covers protect programs while "top-slot" covers allow programming of opposing pins through square openings on top.

SPECIFICATIONS:
Body and cover are red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Pins are brass alloy, 3/4 hard.
Pin plating is 50-150 u [1.27-3.81 u] 60/40 Tin/Lead Alloy.
Current rating = 1 Amp.
Operating temperature = 221°F [105^oC]

MOUNTING CONSIDERATIONS:

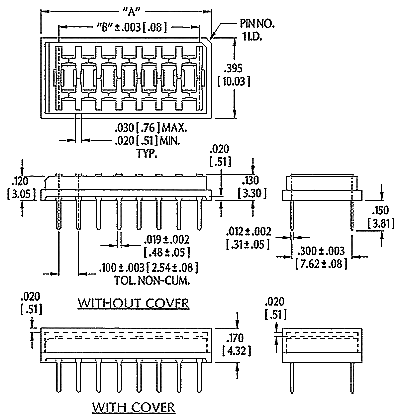

Suggested PCB hole size= .032 +.002 [.81 +.05] dia.

"A"= (No. of Pins per Row X .100 [2.54] ) + .050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series 680
Program Headers
and Covers

Cover Ordering Information

Part Numbers
04-680-190T
04-680-191T
04-680-191TC
06-680-190T
06-680-191T
06-680-191TC
08-680-190T
08-680-191T
08-680-191TC
10-680-190T
10-680-191T
10-680-191TC
12-680-190T
12-680-191T
12-680-191TC
14-680-190T
14-680-191T
14-680-191TC
16-680-190T
16-680-191T
16-680-191TC
18-680-190T
18-680-191T
18-680-191TC
20-680-190T
20-680-191T
20-680-191TC
22-680-190T
22-680-191T
22-680-191TC
24-680-190T
24-680-191T
24-680-191TC
