SPECIFICATIONS:
Socket body is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Bifurcated contacts are Grade A spring-tempered Phosphor Bronze per QQ-B-750.
Contact plating is either 50-150 u [1.27-3.81 um] 60/40 Tin/Lead Alloy, or 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=1 Amp.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Insertion Force=110 grams/pin average; Withdrawal Force = 75 grams/pin average.
Accepts flat leads up to.014 thk. x .020 wide [.36 x .51], round leads up to .020 [.51] in diameter.
Socket accepts lead lengths from seating plane from .075-.160 [1.91-4.06].

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.035 + .002 [.89 + .05]. dia.

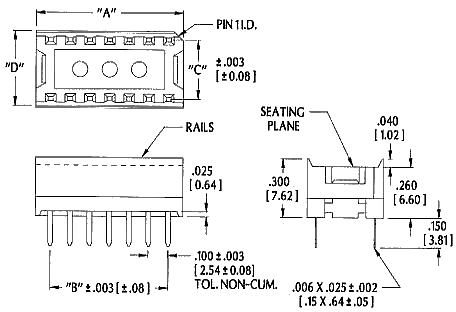

"A"= No. of Pins per Row X .100 [2.54] +.050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]
