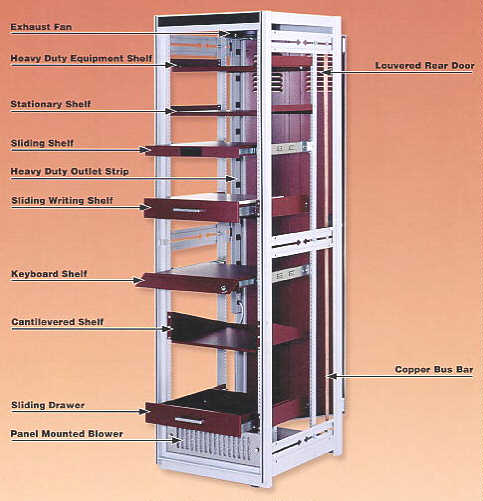

Accessories |
|---|
 |
|---|
| Exhaust and Intake Fans |
|---|
 |  |
|---|

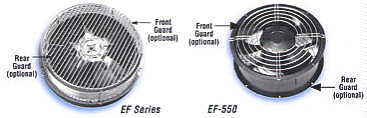

| Fans and motor assemblies are shock mounted for minimum noise and vibration. Interchangeable accessories are available. Motors are shaded pole with permanently lubricated ball bearings, operating at 115 volts, 50/60 cycle, AC single phase with low temperature rise; supplied with 18 inch leads. |
| Ordering Information |
|---|
| Parameter |
Catalog Number |
| EF-165 |
EF-220 |
EF-300 |
EF-400 |
EF-550 |
EF-750 |
| CFM |
165 |
220 |
350 |
400 |
550 |
750 |
| Motor Watts |
20 |
30 |
75 |
90 |
67 |
105 |
| RPM |
1650 |
1600 |
2900 |
1700 |
1650 |
1560 |
| Fan Blade Diameter (Inches) |
6 1/2 |
6 1/2 |
6 1/2 |
8 |
10 |
10 |
| A (Inches) |
3 5/16 |
3 5/8 |
3 7/8 |
3 3/8 |
3 1/2 |
4 3/4 |
| B (Inches) |
1 7/8 |
2 |
2 3/8 |
1 3/4 |
|
2 1/2 |
| C (Inches) |
1 7/16 |
1 5/8 |
1 1/2 |
1 5/8 |
|
2 1/4 |
| D (Inches) |
8 1/2 |
8 1/2 |
8 1/2 |
10 1/2 |
9 11/16 |
12 1/2 |
| Hole Dia. Required (Inches) |
7 3/8 |
7 3/8 |
7 3/8 |
9 3/8 |
9 1/8 |
11 5/16 |
|
|---|
| Accessories for Exhaust Fans |
|---|
| Guards |
|---|
Diameter
(Inches) |
Depth
(Inches) |
Used
With Fan |
Catalog
Number |
| 7 9/16 |
2 5/8 |
EF-165, 220, 300 |
GU-6 |
| 9 5/8 |
2 9/16 |
EF-400 |
GU-8 |
| 10 |
7/16 |
EF-550 |
GU-9 |
| 11 5/8 |
2 7/8 |
EF-750 |
GU-10 |
| |
| Grilles |
|---|
Diameter
(Inches) |
|
Used
With Fan |
Catalog
Number |
| 8 1/2 |
EF-165, 220, 300 |
GR-6 |
| 10 1/2 |
EF-400 |
GR-8 |
| 12 1/2 |
EF-750 |
GR-10 |
| |
| Sleeves |
|---|
Diameter
(Inches) |
Depth
(Inches) |
Used
With Fan |
Catalog
Number |
| 8 1/2 |
1 3/4 |
EF-165, 220, 300 |
SL-6 |
| 10 1/2 |
1 3/4 |
EF-400 |
SL-8 |
| 10 1/2 |
2 3/8 |
EF-750 |
SL-10 |
|
|---|
| Accessories for Intake Fans |
|---|
| Intake Fans |
|---|
| Parameter |
Catalog Number |
| IF-180 |
IF-300 |
IF-360 |
IF-740 |
| CFM |
210 |
350 |
400 |
750 |
| Motor Watts |
30 |
75 |
90 |
105 |
| RPM |
1600 |
2900 |
1700 |
1560 |
| Fan Blade Dia. (Inches) |
6 1/2 |
6 1/2 |
8 |
10 |
| Dimension A (Inches) |
3 3/4 |
4 1/4 |
3 1/2 |
4 3/4 |
| Dimension D (Inches) |
8 1/2 |
8 1/2 |
9 3/8 |
12 1/2 |
Hole Diameter
Required (Inches) |
7 3/8 |
7 3/8 |
9 1/4 |
11 15/16 |
|
|---|
 |  |
|---|
| Filters - Permanent Washable Type, 1/2 Inch Thick |
|---|
Size
(Inches) |
|
Used
With Fan |
Catalog
Number |
| 8 3/8 Sq. |
IF-180, 300 |
FLT-6 |
| 10 3/8 Sq. |
IF-360 |
FLT-8 |
| 12 3/8 Sq. |
IF-740 |
FLT-10 |
| |
| Filter Holders |
|---|
Size
(Inches) |
Depth
(Inches) |
Used
With Fan |
Catalog
Number |
| 8 9/16 Sq. |
5/8 |
IF-180, 300 |
FH-6 |
| 10 9/16 Sq. |
5/8 |
IF-360 |
FH-8 |
| 12 9/16 Sq. |
5/8 |
IF-740 |
FH-10 |
|
|---|
| Panel Mounted Blowers |
|---|
 |  |
|---|
To Fit Standard 19" Wide Panel Space
These blowers
provide maximum cooling with minimum space requirements at a low noise level with minimum vibration. Panel mounting provisions are for EIA standard 19 inch panel spacing. Permanently lubricated ball bearing motors with lubricant temperature range from - 20°C to + 148°C, operate on 115 volt, 50 / 60 cycle, AC, single phase current. Permanent type washable filter is easily removable from the front. Chrome plated grille is supplied with 2 captive thumb nuts. Performance data prepared by an impartial, independent testing laboratory is available on request. Base recessed blowers are available on special order.
|
| Parameter |
Catalog Number |
| PMB-5-150 |
PMB-5-300 |
PMB-7-360 |
PMB-8-525 |
PMB-10-820 |
| CFM at 0" S.P. |
125 |
290 |
300 |
500 |
800 |
| Panel Height (A, Inches) |
5 1/4 |
5 1/4 |
7 |
8 3/4 |
10 1/2 |
| Filter, Permanent (Inches) |
16 5/8 x 47/8 x 1/2 |
16 5/8 x 4 7/8 x 1/2 |
16 5/8 x 6 3/4 x 1/2 |
16 5/8 x 8 1/2 x 1/2 |
16 5/8 x 10 1/8 x 1/2 |
Depth of Enclosure Only
(C, Inches) |
7 5/16 |
7 5/16 |
8 7/32 |
9 |
10 7/32 |
Overall Depth Including
(D, Inches) Outlets |
9 1/32 |
9 1/32 |
10 1/4 |
11 9/16 |
13 15/32 |
| MOTOR | |
|---|
| RPM |
3000 |
3050 |
1550 |
1700 |
1650 |
| Watts |
70 |
125 |
95 |
140 |
220 |
| Volts |
115 |
115 |
115 |
115 |
115 |
| Cycles |
50 / 60 |
50 / 60 |
50 / 60 |
50 / 60 |
50 / 50 |
| AMPS |
1.2 |
1.8 |
1.2 |
1.6 |
2.8 |
| Type |
Ball bearing
shaded pole
|
Ball bearing
shaded pole
|
Ball bearing
shaded pole
capacitor |
Ball bearing
permanent split
capacitor |
Ball bearing
permanent split
capacitor |
|
|---|
Heavy Duty Outlet Strips -
For Internal Rack Mounting |
|---|
 |
- Completely wired with circuit breaker - ready for use.
- Supplied with 6 foot Neoprene cord set with molded plug.
- Rated at 15 Amperes. 130 Volts continuous duty.
- "U" ground outlets - soldered connections.
- Mounting centers 5 inches.
- 1 1/2 inches wide,
1 1/8 inches deep.
- Supplied with spring clips for internal mounting.
- OB-112-mounts horizontally onto frame cross brace providing access without interference to sliding chassis or shelf units not directly in line with the 1 3/4 inch wide outlet strip. Also can be mounted to panel mounting angles or base.
|
|---|
Overall
Length
(Inches) |
Outlets |
Catalog
Number |
| 12 1/2 |
6 |
OB-112 |
| 42 |
8 |
OB-42-8 |
| 52 |
10 |
OB-52-10 |
| 62 |
12 |
OB-62-12 |
|
|---|
| Rack Mount Outlet Strip |
|---|
 |
- Completely wired with circuit breaker. Ready for use.
- Rated at 15 Amperes, 125 volts.
- Supplied with 15 foot power cord 14/3 SJT, molded plug.
- All components UL listed or recognized.
- Mechanically and electrically grounded.
- Black finish.
|
|---|
Overall
Length
(Inches) |
Outlets |
Rack
Space
(Inches) |
Catalog
Number |
| 19 |
6 |
1 3/4 x 19 |
OB-119 |
|
|---|
| Economy Surge Suppressor |
|---|
 | Unit offers surge voltage protection of 6000 V, clamping surge voltage of 325 V and a clamping response time of 10 nanoseconds (10 x 10-9 seconds). Maximum surge dissipation is 70 joules repeated usage, self restoring. The unit features an on/off pilot light/master switch, Beige enamel housing, and snap-on mounting clips. UL listed. |
|---|
Length
(Inches) |
Width
(Inches) |
Height
(Inches) |
Outlets |
Cord
Length
(Feet) |
Catalog
Number |
| 12 1/4 |
1 3/4 |
1 5/8 |
6 |
6 |
OB-115S |
|
|---|
