Premier Metal

Accessories

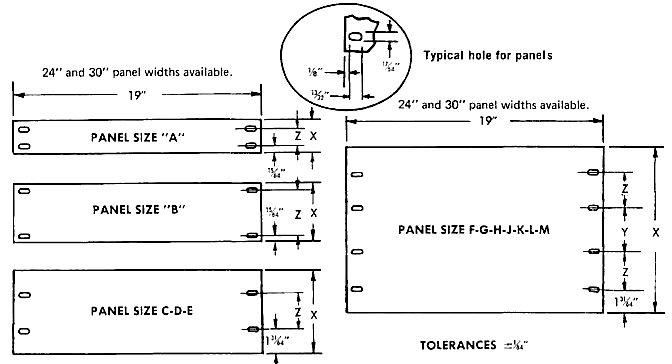

Standard Panel Layout For All PREMIER Panels

Ordering Information
Number of 1 3/4 Inch
Mounting Units
Panel
Size
X
(Inches)
Y
(Inches)
Z
(Inches)
No. of Slots
Each Side
Catalog
Number
1 A 1 23/32   1 1/4 2 MAP, ARP, and RP-119
2 B 3 15/32   3 2 MAP, ARP, and RP-319
3 C 5 7/32   2 1/4 2 MAP, ARP, and RP-519
4 D 6 31/32   4 2 MAP, ARP, and RP-719
5 E 8 23/32   5 3/4 2 MAP, ARP, and RP-819
6 F 10 15/32 3 2 1/4 4 MAP, ARP, and RP-1019
7 G 12 7/32 2 1/4 3 1/2 4 MAP, ARP, and RP-1219
8 H 13 31/32 3 4 4 MAP, ARP, and RP-1419
9 J 15 23/32 4 3/4 4 4 MAP, ARP, and RP-1519
10 K 17 15/32 6 1/2 4 4 MAP, ARP, and RP-1719
11 L 19 7/32 5 3/4 5 1/4 4 MAP, ARP, and RP-1919
12 M 20 31/32 7 1/2 5 1/4 4 MAP, ARP, and RP-2119

Panel Mounting Angles
11/4 x 11/4 Inches
Made of 12 gauge (.104) thick steel
punched on EIA spacings (5/8-5/8 -1/2 inches)
on both legs, with 9/32 inch clearance holes
(for panel mounting hardware, see HW-14).
Angles with tapped holes available.
Specify PMAT plus number.

Also Available:
Extra wide panel mounting angles
to reduce panel space from 24" to 23" or 19".

Ordering Information
Height
(Inches)
Catalog
Number
21
