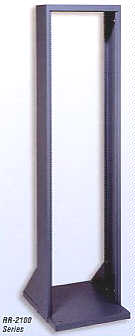

Heavy Duty Utility Racks
- Made of 12-gauge steel on EIA spacings (5/8-5/8-1/2 inch) both front and rear.
- Uprights 8 1/8 inches deep.
- Panels fit into 1/2 inch recess. Either flat or formed panels may be used.
- Vertical members and top cross piece are welded together.
- The base and rear supports are shipped knocked down.
- Finished in Smoke Blue Textured "Sandtex". Other colors available on quotation.
|
| Ordering Information |
|---|
| For 19 Inch Wide Panels |
|---|
Height
(Inches) |
Width
(Inches) |
Panel
Space
(Inches) |
Catalog
Number |
| 64 1/2 |
21 1/16 |
61 1/4x 19 |
RR-2164 |
| 73 1/4 |
21 1/16 |
70 x 19 |
RR-2173 |
| 80 1/4 |
21 1/16 |
77 x 19 |
RR-2180 |
| For 24 Inch Wide Panels |
|---|
| 64 1/2 |
26 1/16 |
61 1/4 x 24 |
RR-2664 |
| 73 1/4 |
26 1/16 |
70 x 24 |
RR-2673 |
| 80 1/4 |
26 1/16 |
77 x 24 |
RR-2680 |
|
|---|
 |
|---|

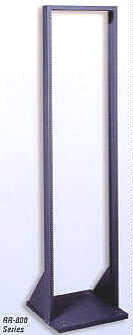

Channel Relay Racks
- Rigidly constructed on 12 gauge cold rolled sheet steel.
- Vertical members and top crossbrace are welded together.
- Panel mounting holes are on EIA spacings (5/8 - 5/8 -1/2 inch). Front Only.
- Racks are shipped knocked down with all necessary bolts for easy assembly.
- Base punched to accommodate CA-4 (2 inch) and CA-5 (3 inch) casters.
- Finished in Smoke Blue Textured "Sandtex". Other colors available on quotation.
|
| Ordering Information |
|---|
Height
(Inches) |
Width
(Inches) |
Depth
(Inches) |
Panel
Space
(Inches) |
Catalog
Number |
| 39 1/4 |
20 |
18 3/8 |
36 3/4 x 19 |
RR-800 |
| 74 1/4 |
20 |
20 7/8 |
71 3/4 x 19 |
RR-801 |
| 79 1/2 |
20 |
207/8 |
77 x 19 |
RR-802 |
| 69 |
20 |
20 7/8 |
66 1/2 x 19 |
RR-803 |
|
|---|
 |
|---|
Table Type Relay Racks
- Rigidly constructed on 16 gauge cold rolled sheet steel.
- Base constructed in one piece, similar to a chassis.
- Panel mounting holes are tapped for 10/32 machine screws on EIA spacings (5/8 - 5/8 - 1/2 inch).
- Racks are shipped knocked down with all necessary bolts for easy assembly.
- Finished in Smoked Blue Texture "Sandtex". Other colors available on quotation.
|
| Ordering Information |
|---|
Height
(Inches) |
Width
(Inches) |
Depth
(Inches) |
Panel
Space
(Inches) |
Catalog
Number |
| 25 |
21 |
12 |
21 x 19 |
TR-2119 |
| 32 |
21 |
12 |
28 x 19 |
TR-2819 |
|
|---|
