Power Dynamics, Inc.

Stacked, P.C.B. Discontinued for reference only

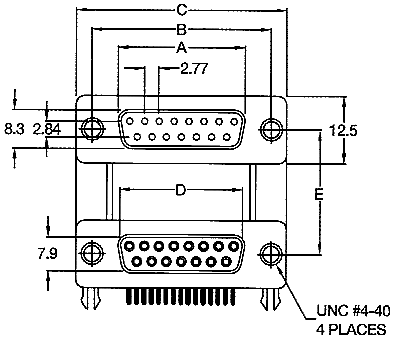

PDI-DB-V (Shown)
	Center Line 6.9mm

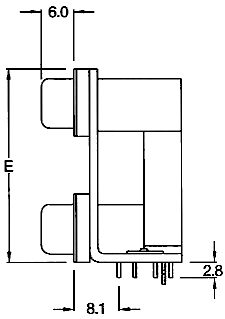

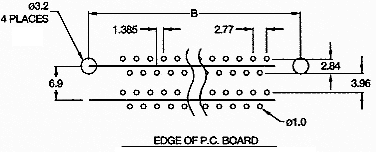

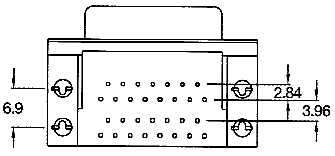

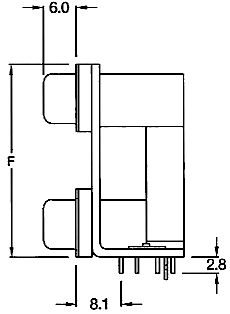

Number of Pins   9 15 25 37 A 16.92 25.25 38.96 55.42 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 16.30 24.60 38.30 54.80	Port to Port Spacing E 15.88 19.05 22.86 F 28.38 31.55 35.36

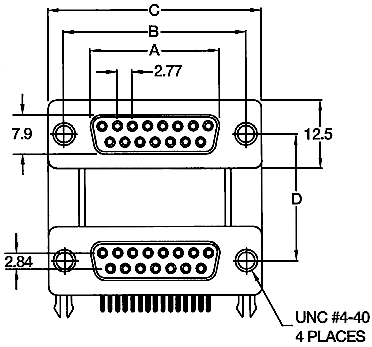

PDI-AA-V (Shown)
	Center Line 6.9mm

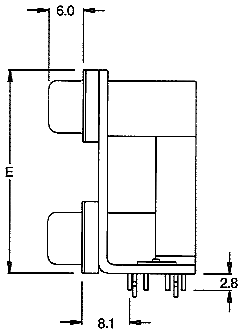

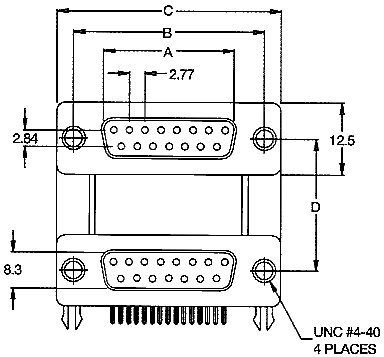

Number of Pins   9 15 25 37 A 16.92 25.25 38.96 55.42 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40	Port to Port Spacing D 15.88 19.05 22.86 E 28.38 31.55 35.36

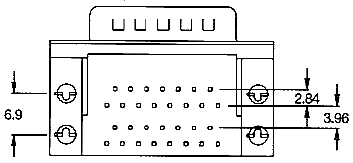

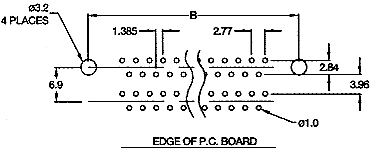

PDI-ECA (Shown)
	Center Line 6.9mm

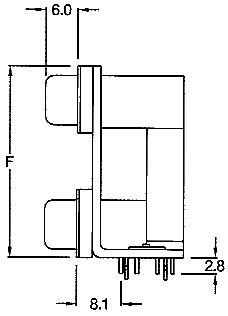

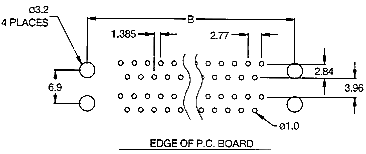

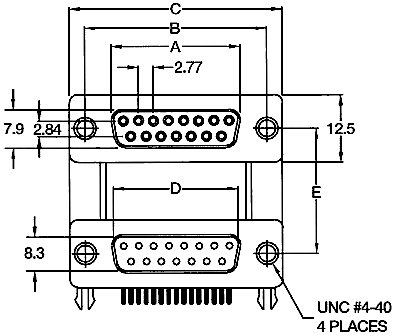

Number of Pins   9 15 25 37 A 16.30 24.60 38.30 54.80 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 16.92 25.25 38.96 55.42	Port to Port Spacing E 15.88 19.05 22.86 F 28.38 31.55 35.36

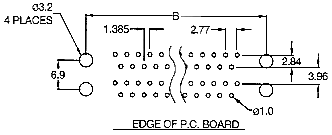

PDI-EDA (Shown)
	Center Line 6.9mm
Number of Pins   9 15 25 37 A 16.30 24.60 38.30 54.80 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40	Port to Port Spacing D 15.88 19.05 22.86 E 28.38 31.55 35.36
Click here for Specifications
