Power Dynamics, Inc.



Material and Finish
Insulator:A Type: Thermoplastic GF
B Type: PBT, rated UL94V-0
Contact:Phosphor Bronze, Selective Gold over 40µ" Nickel min.
Locking Latch:Stainless Steel.
Spring:Steel Wire, Nickel Plated.
Mechanical Specifications
Card Insertion force:10 N max.
Card Withdrawal Force:4 N min.
Insertion Cycle:200 K cycles min.
Electrical Specifications
Rated Voltage:12V
Rated Insulation Voltage:500V RMS
Contact Resistance:Reading Contact: 40 m ohm min.
Card Present Switch: 40 m ohm min
Insulation Resistance:500 M ohm min.
Dielectric Withstanding Voltage:Between card contacts: >1000V RMS
Between card contacts & detection circuit: >1000V RMS
Environmental Condition
Operating Temperature:-25°C to +85°C

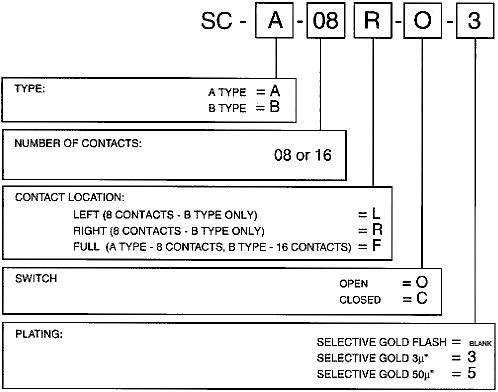

Ordering Code

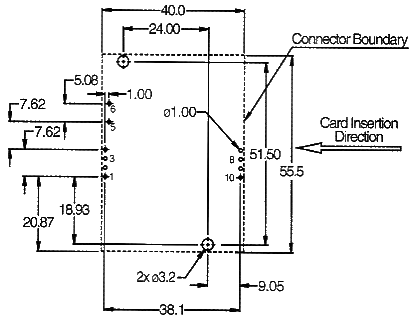

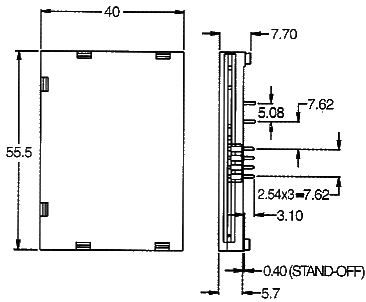

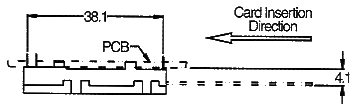

Smart Card 'A" Type

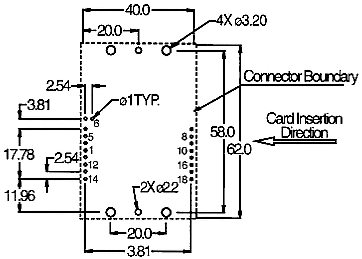

Smart Card 'B" Type

Specifications subject to change without notice.
