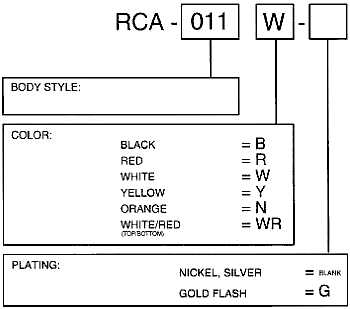

| Material and Finish: |
|---|
| Housing: | |
|---|
| Material: | ABS |
| Rating: | UL 94-HB |
| Contacts: | |
|---|
| Earth Terminal: |
| Material: | Steel |
| Plating: | Nickel, Silver |
| |
| Tip Terminal: |
| Material: | Brass |
| Plating: | Nickel, Silver |
| |
| Shunt Terminal: |
| Material: | Brass |
| Plating: | Nickel, Silver |
| |
| Mechanical Specifications: |
|---|
| Insertion Force: | 3 kg max. |
| Extraction Force: | 0.8 to 3 kg max. |
| |
| Electrical Specifications: |
|---|
| Insulator Resistance: | 100 Megaohm min. @ 500 VDC |
| Dielectric Withstanding Strength: | 500 VAC @ 50/60 Hz for 1 minute |
| Contact Resistance: | 30 milliohm max. @ 1 kHz
and less than 100 milliamps |
| Soldering Heat: | 180°C for 4 seconds |
| Current Rating: | 1A |
|
