Power Dynamics, Inc.

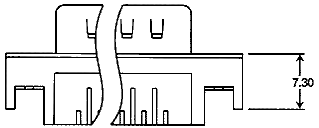

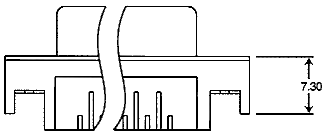

Right Angle, P.C.B., 5.0mm Footprint

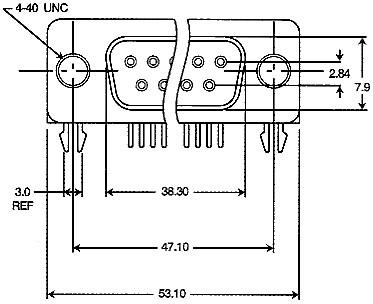

PDI-25R-5

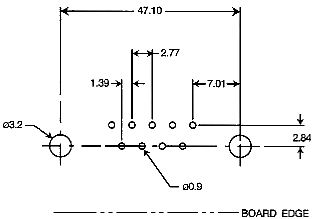

P.C.B. Layout
Top View

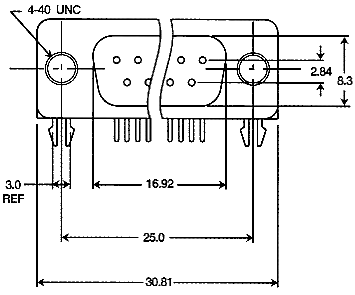

PDI-09S-5


P.C.B. Layout
Top View

Click here for Specifications

Specifications subject to change without notice. Dimensions in mm.
