| Power Sockets |
|---|
| DC-002
|
|---|
 |  |
|---|
 |
P.C.B. Layout Top View |
|---|
| Specifications DC-002 |
|---|
| Material and Finish: |
|---|
| Housing: (Body & Cover) | |
|---|
| Material: | P.B.T.; Valox 420-SEO |
| Rating: | UL 94V-0 |
| Contacts: |
|---|
| Terminals A & B: | |
| Material: | Brass |
| Plating: | Silver |
| Earth Terminal: | |
| Material: | Brass |
| Plating: | Silver |
| Terminal C: | |
| Material: | Phosphor Bronze |
| Plating: | Silver |
| Mechanical Specifications: |
|---|
| Insertion Force: | 3.5Kg max. |
| Withdrawal Force: | 0.5Kg to 2.5Kg |
| Electrical Specifications: |
|---|
| Rated Current: | |
| Pin A & B: | 7.5A max at 20 VDC |
| Pin C: | 1A max at 20 VDC |
|
| |
| DC-002S
|
|---|
 |  |
|---|
 |
P.C.B. Layout Top View |
|---|
| Specifications DC-002S |
|---|
| Material and Finish: |
|---|
| Housing: (Body & Cover) | |
|---|
| Material: | P.B.T.; Valox 420-SEO |
| Rating: | UL 94V-0 |
| Contacts: |
|---|
| Terminals A & B: | |
| Material: | Brass |
| Plating: | Silver |
| Earth Terminal: | |
| Material: | Brass |
| Plating: | Silver |
| Terminal C: | |
| Material: | Phosphor Bronze |
| Plating: | Silver |
| Shield: | |
| Material: | Brass |
| Plating: | Tin/Lead (90%/10%) |
| Mechanical Specifications: |
|---|
| Insertion Force: | 3.5Kg max. |
| Withdrawal Force: | 0.5Kg to 2.5Kg |
| Electrical Specifications: |
|---|
| Rated Current: | |
| Pin A & B: | 7.5A max at 20 VDC |
| Pin C: | 1A max at 20 VDC |
|
| |
| |
| DC-003
|
|---|
 |  |
|---|
 |
P.C.B. Layout Top View |
|---|
| Specifications DC-003 |
|---|
| Material and Finish: |
|---|
| Housing: (Body & Cover) | |
|---|
| Material: | P.B.T.; Valox 420-SEO |
| Rating: | UL 94V-0 |
| Contacts: |
|---|
| Contact Terminals: | |
| Material: | Brass |
| Plating: | Silver |
| Earth Terminal: | |
| Material: | Brass |
| Plating: | Silver |
| Mechanical Specifications: |
|---|
| Insertion Force: | 3.5Kg max. |
| Withdrawal Force: | 0.5Kg to 2.5Kg |
| Electrical Specifications: |
|---|
| Rated Current: | 7.5A max at 20 VDC |
|
| |
| |
| DC-003S
|
|---|
 |  |
|---|
 |
P.C.B. Layout Top View |
|---|
| Specifications DC-003S |
|---|
| Material and Finish: |
|---|
| Housing: (Body & Cover) | |
|---|
| Material: | P.B.T.; Valox 420-SEO |
| Rating: | UL 94V-0 |
| Contacts: |
|---|
| Contact Terminals: | |
| Material: | Brass |
| Plating: | Silver |
| Earth Terminal: | |
| Material: | Brass |
| Plating: | Silver |
| Shield | |
| Material: | Brass |
| Plating: | Tin/Lead (90%/10%) |
| Mechanical Specifications: |
|---|
| Insertion Force: | 3.5Kg max. |
| Withdrawal Force: | 0.5Kg to 2.5Kg |
| Electrical Specifications: |
|---|
| Rated Current: | 7.5A max at 20 VDC |
|
| |
| |

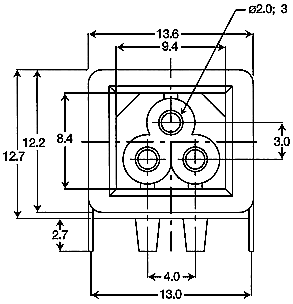

| AC-001
|
|---|
 |  |
|---|
| For Specifications, please contact Beckwith Electronics |
P.C.B. Layout Top View |
|---|
