Features
- Low cost type
- Low leakage current: 0.8mA max
- Printed circuit terminals
Applications
- Digital electronic equipment, measuring control equipment, small electronic equipment and pheripherals, ect.
|
PF01PC
PF03PC
PF06PC
PF10PC
 |
- Approvals:

|
| Specifications |
|---|
| Model No. |
PF01PC |
PF03PC |
PF06PC |
PF10PC |
| Rated Voltage |
250V AC |
250V AC |
250V AC |
250V AC |
| Rated Current |
1A |
3A |
6A |
10A |
| Leakage Current |
0.8mA MAX
250V, 60Hz |
0.8mA MAX
250V, 60Hz |
0.8mA MAX
250V, 60Hz |
0.8mA MAX
250V, 60Hz |
Test
Voltage |
Line to Line |
1450V DC |
1450V DC |
1450V DC |
1450V DC |
| Line to Ground |
2250V DC |
2250V DC |
2250V DC |
2250V DC |
| Insulation Resistance |
6000M ohms MIN |
6000M ohms MIN |
6000M ohms MIN |
6000M ohms MIN |
Direct Current
Resistance |
0.5 ohm MAX |
0.2 ohm MAX |
0.15 ohm MAX |
0.1 ohm MAX |
| Temperature Rise |
35°C MAX |
35°C MAX |
35°C MAX |
35°C MAX |
| Operating Temperature |
-25°C to
+85°C |
-25°C to
+85°C |
-25°C to
+85°C |
-25°C to
+85°C |
| Attenuation |
|---|
Normal Mode
25db MIN |
0.70 - 50 MHz |
1.30 - 50 MHz |
2.00 - 50 MHz |
3.00 - 50 MHz |
Common Mode
25db MIN |
0.10 - 45 MHz |
0.20 - 50 MHz |
0.40 - 40 MHz |
0.90 - 50 MHz |
|

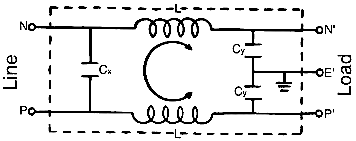

| Circuit
|
|---|
| Part No. |
L(mH) x 2 |
Cx (µF) |
Cy (pF) x 2 |
| PF01PC |
3.7 |
0.1 x 2 |
3300 |
| PF03PC |
1.8 |
0.1 x 2 |
3300 |
| PF06PC |
0.7 |
0.1 x 2 |
3300 |
| PF10PC |
0.1 |
0.1 x 2 |
3300 |
|
|---|
| Drawings |
|---|
|
|
|---|

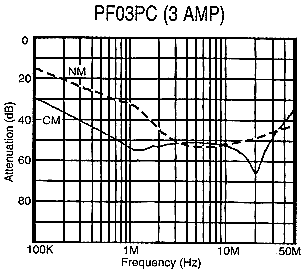

| Attenuation in 50 ohm-50 ohm circuit according CISPR |
|---|
|
|
|---|
| Specifications subject to change without notice. Dimensions in inches. (Metric dimensions are shown in parentheses.) |
