Power Dynamics, Inc.

Economy Series for "C" Size Cells
Features Fits all type cells-Nickel Cadmium, Carbon-Zinc, Alkaline & Carbon Wire leads 150mm long, ends stripped and tinned 4mm typ. Snap terminals male/female (standard 9V configuration) Battery holder can be mounted in any position and is designed to keep batteries secure and in place at all times by means of taper beam fittings When in place battery holder is completely insulated from chassis Non-metallic Batteries snap in place to assure positive contact Battery compartments keep possible leakage self contained Ideal where shock and vibrations are encountered Impact resistant polypropylene Low contact resistance Applications Microcomputers & Microprocessors Memory back-up for CMOS Telecommunication equipment Power source for computer real time clocks Appliances Programmable electronic games Emergency power supply equipment Alarm & security back-up Industrial controls Electronic communications devices	PDSN-14 Accepts (2) "C" cells
Specifications
Material: Holder: Impact resistance polypropylene, flammability rating UL 94V-0 Contacts: Spring steel, nickel plated Terminals: Brass, nickel plated, snap fastener male/female terminals Spring: Spring steel, nickel plated Color: Black Temperature Range: -10°C to +105°C Resistance to Solvents: Aromatic and aliphatic solvents, hydrocarbons, common oils, refrigerants
Options
PDI Battery Holders are available with the following terminal options: Option A: Wire Leads (26 AWG) Positive = Red Negative = Black Option C: Solder terminals for "D" and "C" size Option B: Snap Terminals Option C: Solder terminals for "AA" , "AAA", and "N" size Option B: Snap Terminals (For PDSN-16-1 and PDSN-18-2 only) Option D: PC terminals
Ordering Code

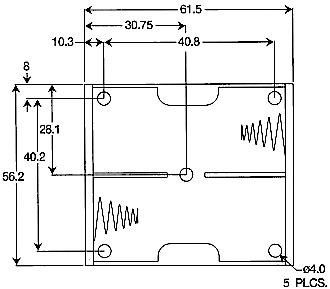

Drawings
Specifications subject to change without notice. Dimensions in mm. Custom battery holders available on request. Contact Beckwith Electronics for details.
