Features
- General purpose filter with IEC Connector providing effective equipment protection of line-to-ground noise up to 10 amp., 250 VAC
- Low cost
- Compact design
- Low leakage current: less than 0.5mA max
- Solder terminals
Applications
- Digital electronic equipment, measuring and control equipment, small electronic equipment and pheripherals, ect.
|
PB01S PB03S PB06S PB10S
![](iec33.gif) |
- Approvals:
![](ul.gif) ![](csa.gif) ![](vde.gif)
|
Specifications |
Model No. |
PB01S |
PB03S |
PB06S |
PB10S |
Rated Voltage |
250V AC |
250V AC |
250V AC |
250V AC |
Rated Current |
1A |
3A |
6A |
10A |
Leakage Current |
0.5mA MAX 250V, 60Hz |
0.5mA MAX 250V, 60Hz |
0.5mA MAX 250V, 60Hz |
0.5mA MAX 250V, 60Hz |
Test Voltage |
Line to Line |
1450V DC |
1450V DC |
1450V DC |
1450V DC |
Line to Ground |
2250V DC |
2250V DC |
2250V DC |
2250V DC |
Insulation Resistance |
6000M ohms MIN 250V DC |
6000M ohms MIN 250V DC |
6000M ohms MIN 250V DC |
6000M ohms MIN 250V DC |
Direct Current Resistance |
0.5 ohm MAX |
0.2 ohm MAX |
0.15 ohm MAX |
0.1 ohm MAX |
Temperature Rise |
30°C MAX |
30°C MAX |
30°C MAX |
30°C MAX |
Operating Temperature |
-25°C to +85°C |
-25°C to +85°C |
-25°C to +85°C |
-25°C to +85°C |
Attenuation |
Normal Mode 25db MIN |
0.60 - 45 MHz |
0.80 - 50 MHz |
1.00 - 50 MHz |
1.00 - 50 MHz |
Common Mode 25db MIN |
0.10 - 40 MHz |
0.20 - 40 MHz |
0.50 - 50 MHz |
0.70 - 50 MHz |
|
Circuit ![](pa01fd.gif)
|
Part No. |
L(mH) x 2 |
Cx (µF) |
Cy (pF) x 2 |
PB01S |
3.7 |
0.1 |
3300 |
PB03S |
1.8 |
0.1 |
3300 |
PB06S |
0.7 |
0.1 |
3300 |
PB10S |
0.3 |
0.1 |
3300 |
|
Drawings |
|
Attenuation in 50 ohm-50 ohm circuit according CISPR |
PB01S (1 AMP)
![](pa01fe.gif) |
PB03S (3 AMP)
![](pa01ff.gif) |
PB06S (6 AMP)
![](pa01fg.gif) |

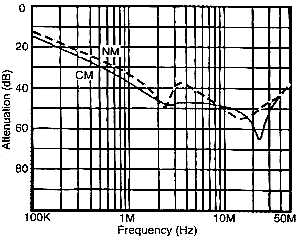

PB10S (10 AMP)
![](pa01fh.gif) |
|
Specifications subject to change without notice. Dimensions in inches. (Metric dimensions are shown in parentheses.) |
