MDC-27 Series Snap In with Side Kink Shield
MDC-278 Shown
	Detail "A"
Specifications
Material and Finish: Body: Material: P.B.T.; Valox 420-SEO Rating: UL 94V-0 Shield: Material: Steel Plating: Lead 10% / Tin 90% Contacts: Contact Terminals: Material: Phosphor Bronze Plating: Silver Earth Terminal: Material: Brass Plating: Lead 10% / Tin 90% Mechanical Specifications: Extraction Force: 0.9 - 3 kg Insertion Force: 4.5 kg max. Electrical Specifications: Rated Current: AC: 1 A @ 100 VAC DC: 2 A @ 12 VDC Insulator Resistance: 50 Megaohm min. @ 250 VDC Dielectric Withstanding Strength: 250 VAC for 1 minute Contact Resistance: 30 milliohm max.
Part Numbers & Drawings

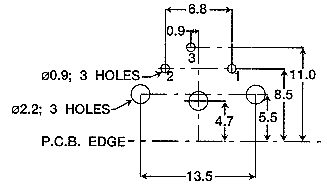

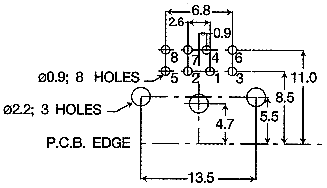

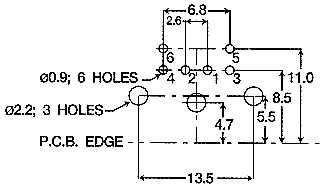

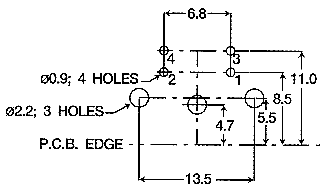

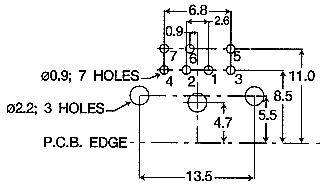

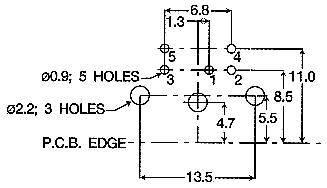

Part No. / Contact Arrangement PCB Layout Top View MDC-273 3 Contacts MDC-274 Discontinued for reference only 4 Contacts MDC-275 5 Contacts MDC-276 Discontinued for reference only 6 Contacts MDC-277 7 Contacts MDC-278 Discontinued for reference only 8 Contacts

Specifications subject to change without notice. Dimensions in mm.
