MDC-09 Series Snap In with Shield
MDC-098 Shown
Specifications
Material and Finish: Body: Material: P.B.T.; Valox 420-SEO Rating: UL 94V-0 Shield: Material: Steel Plating: Lead 10% / Tin 90% Contacts: Contact Terminals: Material: Phosphor Bronze Plating: Silver Earth Terminal: Material: Brass Plating: Lead 10% / Tin 90% Mechanical Specifications: Extraction Force: 0.9 - 3 kg Insertion Force: 4.5 kg max. Electrical Specifications: Rated Current: AC; 1 A @ 100 VAC DC: 2 A @ 12 VDC Insulator Resistance: 50 Megaohm min. @ 250 VDC Dielectric Withstanding Strength: 250 VAC for 1 minute Contact Resistance: 30 milliohm max.
Part Numbers & Drawings

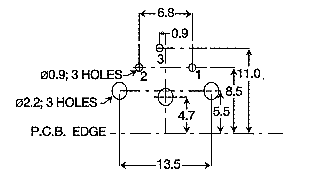

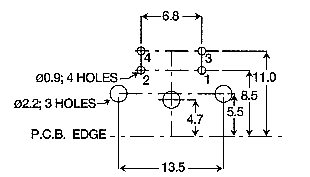

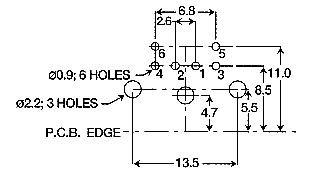

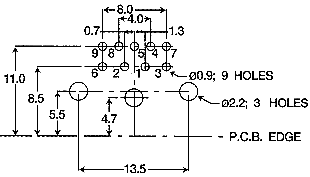

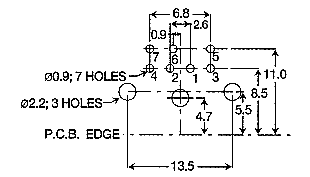

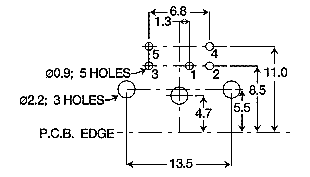

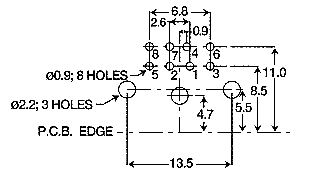

Part No. / Contact Arrangement PCB Layout Top View MDC-093 3 Contacts MDC-094 4 Contacts MDC-095 5 Contacts MDC-096 Discontinued for reference only 6 Contacts MDC-097 7 Contacts MDC-098 8 Contacts MDC-099 9 Contacts

Specifications subject to change without notice. Dimensions in mm.
