Power Dynamics, Inc.

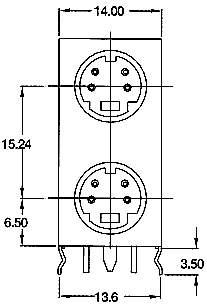

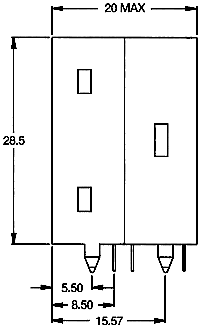

Stacked, Fully Shielded

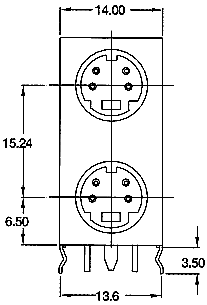

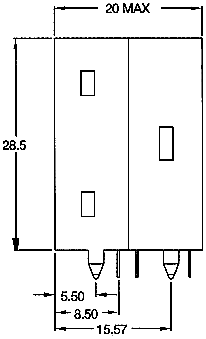

MDC - 294 - 294
	PCB Layout
4 Contacts 4 Contacts

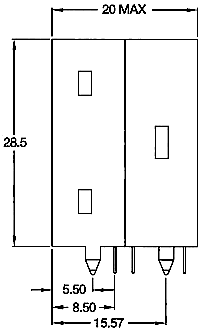

MDC - 294 - 296
	PCB Layout
4 Contacts 6 Contacts

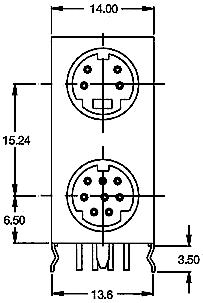

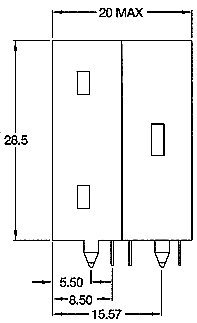

MDC - 294 - 298
	PCB Layout
4 Contacts 8 Contacts

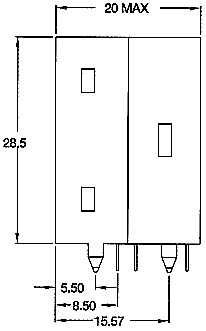

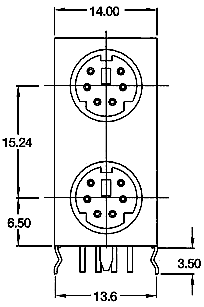

MDC - 296 - 296
	PCB Layout
6 Contacts 6 Contacts
MDC - 296 - 298
	PCB Layout
6 Contacts 8 Contacts

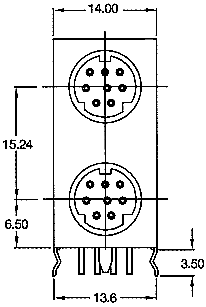

MDC - 298 - 298
	PCB Layout
8 Contacts 8 Contacts

For specifications, please contact Beckwith Electronics.
Specifications subject to change without notice. Dimensions in mm.
