Power Dynamics, Inc.

HGN-365 series line filters feature an IEC Connector with an integral fuse holder; available for one or two 5 x 20mm fuses. (IEC 601 prescribes fusing of both lines.) Fully enclosed metal housing prevents input of high frequency noise and protects ultra-sensitive equipment. HGN-365
Fused
Approvals:

Technical Data
Operating voltage:250 V / 50 Hz
110 V / 60 Hz
Rated current:1A / 2A / 4A / 6A
(6A for UL & VDE only)
Leakage current:<0.5 mA / 250 VAC
Temperature range:-25°C + 85°C
Test voltage (VDE 0565):1.8 kV / 50 Hz - 2 s

Example & Ordering Code

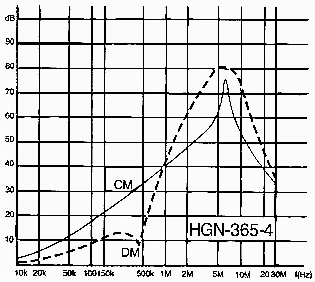

Attenuation in 50 ohm-50 ohm circuit according CISPR

Specifications subject to change without notice. (Metric dimensions are shown in parentheses.) All versions available for medical grade application. Contact Beckwith Electronics.
