Power Dynamics, Inc.
D-Sub to Phone Jack |

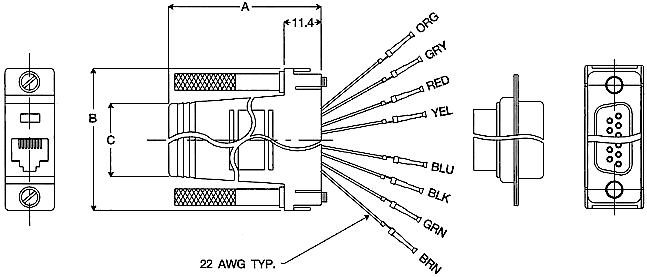

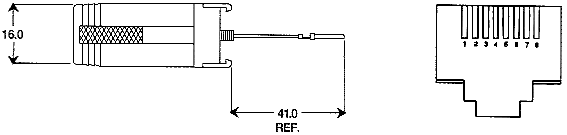

PDI-09R-8P8C (Shown) |
|
|
Dimensions |
| A | B | C |
9 Pin | 49.30 | 32.80 | 19.60 |
15 Pin | 39.30 | 41.50 | 23.00 |
25 Pin | 39.30 | 55.00 | 34.00 |
|
Wire Designation |
Pos# | Color |
1 | Blu |
2 | Org |
3 | Blk |
4 | Red |
5 | Grn |
6 | Yel |
7 | Brn |
8 | Gry |
|
|

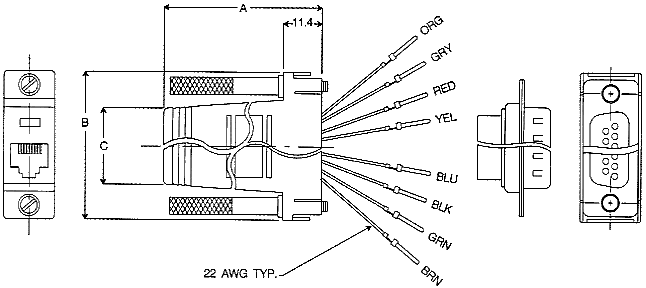

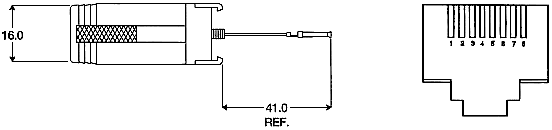

PDI-25S-8P8C (Shown) |
|
|
Dimensions |
| A | B | C |
9 Pin | 49.30 | 32.80 | 19.60 |
15 Pin | 39.30 | 41.50 | 23.00 |
25 Pin | 39.30 | 55.00 | 34.00 |
|
Wire Designation |
Pos# | Color |
1 | Blu |
2 | Org |
3 | Blk |
4 | Red |
5 | Grn |
6 | Yel |
7 | Brn |
8 | Gry |
|
|
Click here for Specifications |
Specifications subject to change without notice. Dimensions in mm.
