Power Dynamics, Inc.

Specifications
for D-Sub High Density Straight Connectors
Material and Finish
Shell
Material:Steel
Equivalent to ANSI 1008
Plating:Tin
Thickness:Base Copper: 40µ"
Tin: 80 - 120µ"
Contacts
Material:Brass (male)
Phosphor Bronze (female)
Plating:Gold Plate or Tin/Lead over Nickel
Thickness:Gold Flash
40µ" Nickel base
80 - 100µ" Tin/Lead
Insulator
P.B.T. and glass-fiber reinforced
UL 94V-0

Mechanical
Mating Force:15 Pin26 Pin44 Pin62 Pin
Minimum:1.5 kg2.0 kg3.5 kg3.5 kg
Maximum:5.0 kg7.0 kg8.0 kg12.0 kg

Unmating Force:15 Pin26 Pin44 Pin62 Pin
Minimum:1.5 kg2.0 kg3.0 kg3.0 kg
Maximum:5.0 kg7.0 kg8.0 kg12.0 kg

Electrical Specifications
Rated Current:3 A
Rated Voltage:300 VDC
Insulation Resistance:3000 Megaohm min. @ 500 VDC
Contact Resistance:15 milliohm max.
Dielectric Withstanding Strength:1000 VAC for 1 minute
Temperature:-55°C to +105°C

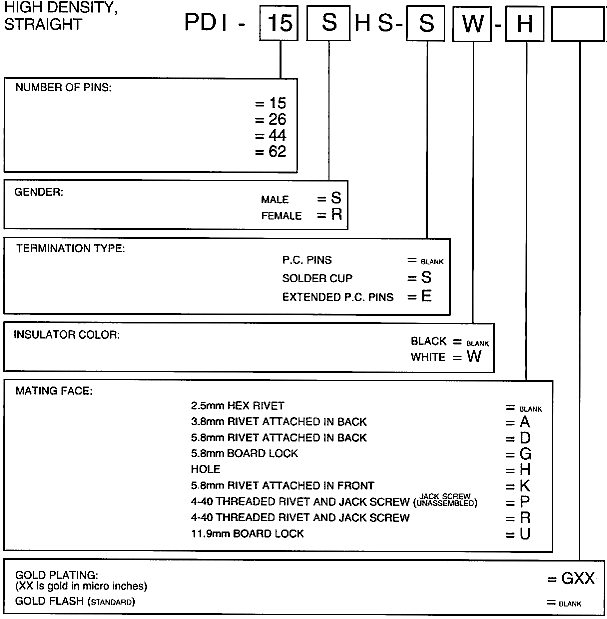

Ordering Code

Specifications subject to change without notice. Dimensions in mm.
