Power Dynamics, Inc.

Covers, Metal and Plastic

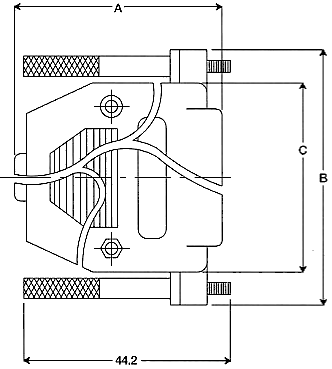

PDM-37C-T (Shown)
	Dimensions   A B C D 9 Pin 20.00 15.60 31.00 8.50 15 Pin 27.90 15.80 40.00 10.00 25 Pin 41.50 16.00 53.50 11.00 37 Pin 57.80 16.00 69.20 14.00

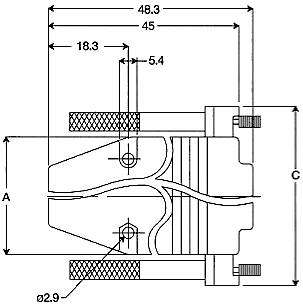

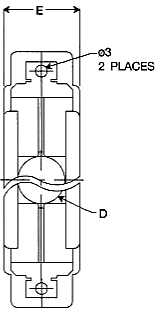

PDP-15C-G-T (Shown)
	Dimensions   A B C D E 9 Pin 40.50 30.95 20.50 8.5 16.00 15 Pin 36.80 39.50 27.50 10.00 16.00 25 Pin 44.00 55.00 41.00 11.00 16.00 37 Pin 52.80 69.40 57.80 14.00 24.75

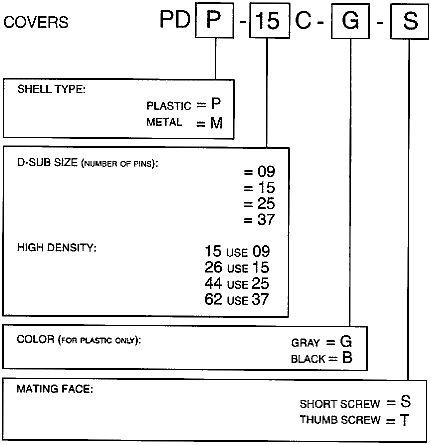

Example & Ordering Code
