Power Dynamics, Inc.

American Electronic Jumper Cord Set
10095
10096

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
10095 3'3" (1.0M) 18/3 SVT 41/34B.C. .255 (6.5) 10A 250V Black
10096 7'6" (2.3M) 18/3 SVT 41/34B.C. .255 (6.5) 10A 250V Black
American Cord Set
10088
10087

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
10088 7'6" (2.3M) 18/3 SVT 41/34B.C. .255 (6.5) 10A 125V Black
10087 7'6" (2.3M) 16/3 SJT 66/0.16 .34 (8.6) 10A 125V Black
Part Number Approvals Rating Size of Conductor Type of Cordage Length Temperature Rating*
AWG Composition
10086 1250W
10A 125V		 18 41/0.16 SVT 7'6" (2.3M) SVT-60°C, 75°C,
105°C

10084 1250W
10A 125V		 18 41/0.16 SVT 7'6" (2.3M) SVT-60°C, 75°C,
105°C

10082 1250W
10A 250V		 18 41/0.16 SVT 7'6" (2.3M) SVT-60°C, 75°C,
105°C

10080 1250W
10A 250V		 18 41/0.16 SVT 7'6" (2.3M) SVT-60°C, 75°C,
105°C

Part Number Approvals Rating Nominal O.D. Cord
Length		 Color Description
10078 10A 250V .283 (7.2) 7'6" (2.3M) Black 3 x 1.0mm2 H05VV-F

Specifications subject to change without notice. (Metric dimensions are shown in parentheses.)
* If not specified, 60°C will be supplied.

    Note:
    To specify shielded cord, add suffix:
  1. Copper braid shielded
  2. 100% Aluminum-Mylar tape shielded
  3. Both A & B



American Hospital Grade Cord Set
1162H

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
1162H 8'2" (2.5M) 18/3 SJT .307 (7.8) 10A 125V Gray



American Cord Set
10060

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
10060 8'2" (2.5M) 14/3 SJT 43/0.25 .378 (9.6) 15A 125V Black



English Fused Cord Set
14012

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
14012 8'2" (2.5M) 3 x 1.0mm2
H05VV-F		 .283 (7.2) 10A 250V Black



Swiss Cord Set
13012

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
13012 8'2" (2.5M) 3 x 1.0mm2
H05VV-F		 .283 (7.2) 10A 250V Black



Australian / New Zealand Cord Set
15012

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
15012
 8'2" (2.5M) 3 x 1.0mm2
H05VV-F		 .283 (7.2) 10A 250V Black



Italian Cord Set
14512

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
14512
 8'2" (2.5M) 3 x 1.0mm2
H05VV-F		 .283 (7.2) 10A 250V Black

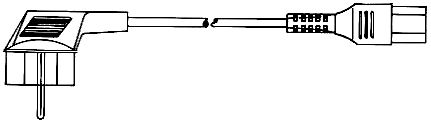

European Cord Set
12013

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
12013

Add S for Straight Plug (12013S)

 8'2" (2.5M) 3 x 1.0mm2
H05VV-F		 .283 (7.2) 10A 250V Black




European Cord Set
12060

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
12060 8'2" (2.5M) 3 x 1.0mm2
H05VVF3G1.5		 8.5mm 16A 250V Black



South African Cord Set
16012

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
16012 8'2" (2.5M) 3 x 1.0mm2
H05VV-F		 .283 (7.2) 10A 250V Black



Danish Cord Set
18012

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
18012 8'2" (2.5M) 3 x 1.0mm2
H05VV-F		 .283 (7.2) 10A 250V Black



American Cord Set
10090

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
10090 2.3m 18/3 SVT (6.5mm) 10A 125V Black



American Cord Set
10092

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
10092 2.3m 18/2 SPT-1
Non-Integeral		 (2.7 x 5.4) 2.5A 125V Black



Japanese Cord Set
19012

 Part Number Cord Length Description Nominal O.D. Rating Color Approvals
19012 8'2" (2.5M) (3 x 0.75mm2) VCTF (7.0mm) 7A 125V Black



Power Cord Clamp
This clamp is used with PDI's 10088 and 10088-A Power Cords.CRC-1
