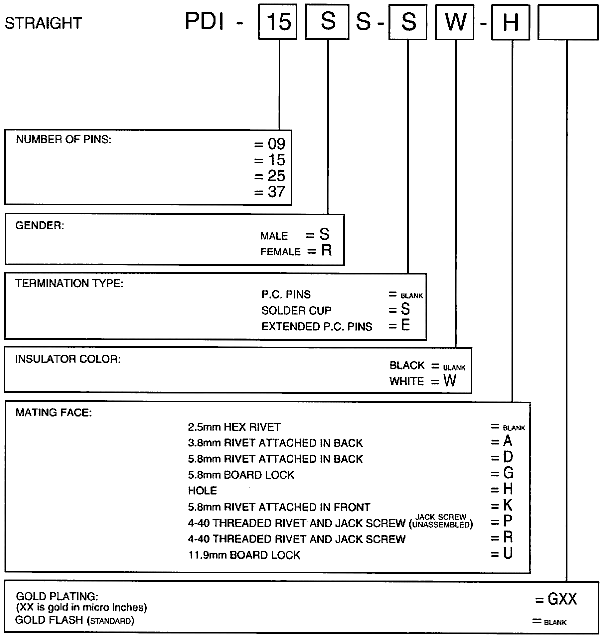

| Material and Finish |
|---|
| Shell | |
|---|
| Material: | Steel |
| Plating: | Tin |
| Thickness: | Base Copper: 40µ"
Tin: 80 - 120µ" |
| Contacts | |
|---|
| Material: | Brass (male)
Phosphor Bronze (female) |
| Plating: | Gold Plate or Tin/Lead over Nickel |
| Thickness: | Gold Flash
40µ" Nickel base
80 - 100µ" Tin/Lead |
| Insulator | |
|---|
P.B.T. and glass-fiber reinforced
UL 94V-0 |
| Mechanical |
|---|
| Mating Force: | 9 Pin | 15 Pin | 25 Pin | 37 Pin |
|---|
| Minimum: | 1.5 kg | 2.0 kg | 3.0 kg | 3.0 kg |
|---|
| Maximum: | 5.0 kg | 7.0 kg | 8.0 kg | 12.0 kg |
|---|
| |
| Unmating Force: | 9 Pin | 15 Pin | 25 Pin | 37 Pin |
|---|
| Minimum: | 1.5 kg | 2.0 kg | 3.5 kg | 3.5kg |
|---|
| Maximum: | 5.0 kg | 7.0 kg | 8.0 kg | 12.0 kg |
|---|
|
| Electrical Specifications |
|---|
| Rated Current: | 3 A |
| Rated Voltage: | 300 VDC |
| Insulator Resistance: | 3000 Megaohm min. @ 500 VDC |
| Contact Resistance: | 15 milliohm max. |
| Dielectric Withstanding Strength: | 1000 VAC for 1 minute |
| Temperature: | -55°C to +105°C |
