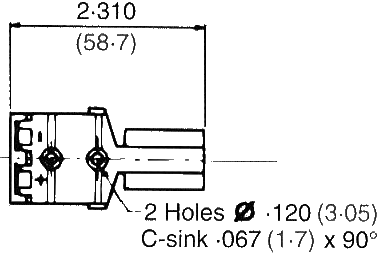

B33 A.P.C.B./Baseboard mounting battery holder accepts a single "9V" size cell (BS397, max. dimensions W26.5 x D17.5 x H48.5mm). It has dual connections either by P.C.B. or .110" solder tabs and two holes to lock holder onto the P.C.B. or baseboard. Polarity is clearly marked. PC pin may be trimmed for base mounting only.	"9V" Size Cells P.C.B./Baseboard Mounting
Specifications
Materials: Housing: Nylon, 94HB Contacts: Nickel silver Operating Temp.: -30°C to +70°C

B33

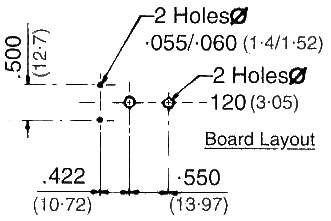

P.C.B. Layout
Specifications subject to change without notice. Dimensions in inches. (Metric dimensions are shown in parentheses.)
