Power Dynamics, Inc.

B1/1, B2/1, B3/1, B4/1, B5/1
Panel mounting battery holders accepting 1, 2, 3, 4, or 5 C size cells (BS397 max. dimensions - 026.2mm x 50mm). Screw on cap clearly marked 'Battery', Mounting by single hole from front panel with rear lock nut. Rear mounting hole 0.093" (2.4mm). Connection by .110" solder tabs.

B1/1 - 1 cell.
B2/1 - 2 cells.
B3/1 - 3 cells.
B4/1 - 4 cells.
B5/1 - 5 cells.
"C" Size Cells
Panel Mounting

Specifications

Materials:

Housing: Nylon and glass filled nylon, 94HB

Contacts: Nickel silver

Operating Temp.: -30°C to +70°C

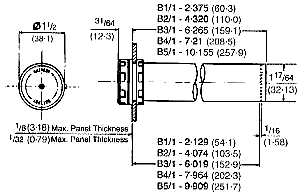

B1/1, B2/1, B3/1, B4/1, B5/1

Panel cut-out

Specifications subject to change without notice. Dimensions in inches.
(Metric dimensions are shown in parentheses.)

B1/1, B2/1, B3/1, B4/1, B5/1
	Panel cut-out
Specifications subject to change without notice. Dimensions in inches. (Metric dimensions are shown in parentheses.)
