Power Dynamics, Inc.
| Cable Connectors | |
|---|---|

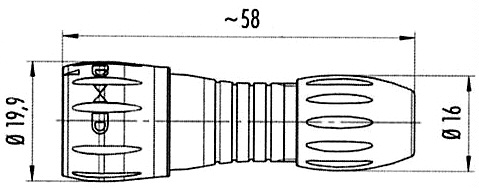

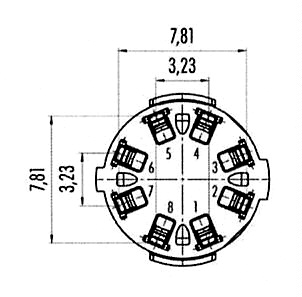

 Cable Connector PD-HEC2-MCC-4 |  Cable Connector PDI-HEC2-MCC-4 Cable Dia:2.5-4mm |
Cable Connector PD-HEC2-MCC-6 | Cable Connector PDI-HEC2-MCC-6 Cable Dia:4-6mm |

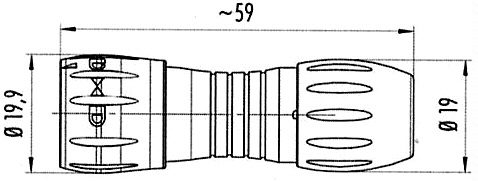

Cable Connector PD-HEC2-MCC-8 |  Cable Connector PDI-HEC2-MCC-8 Cable Dia:6-8mm |
 | |
| |
| Panel Connectors | |

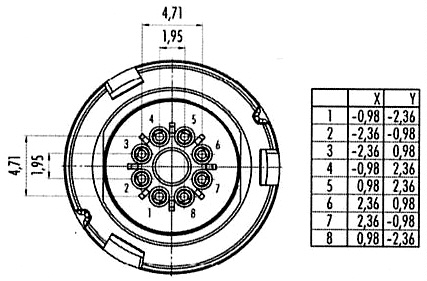

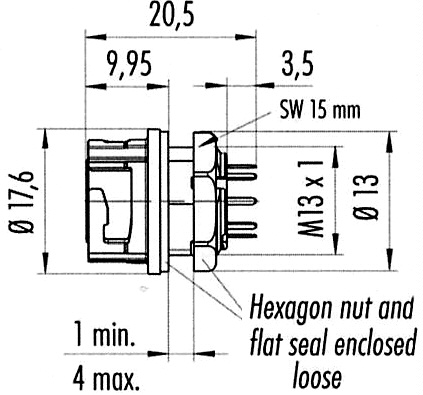

 Panel Connector-PC Pins IP67 Unmated PD-HEC2-FPC-P |  |
 Panel Connector-Solder Pins IP67 Unmated PD-HEC2-FPC-S |  |
| |
| Specifications | |
| Operating Temperature: | -25ºC to +85ºC |
| Body & Housing: | PA UL-94-HB / PA UL-94-V-0 |
| Termination: | PC, Solder |
| Contact: | Brass |
| Plating: | Gold |
| Contact Ratings: | Power: 2A, 175V per contact |
| Contacts: | 8 |
| Protection: | IP67 Mated - Cable Connector Unmated/Mated - Panel Connector |
| Contact Resistance: | <15mΏ |
| Mating Cycles: | >5000 |
| Approved Wire Gauge: | 24 AWG max |
| Locking Type: | Bayonet |
| |
| Specifications subject to change without notice. Dimensions in mm. | |
