Power Dynamics, Inc.
Integral combination IEC power connector, fuse holder & On/Off switch. Designed to eliminate discrete purchase, inventory & assembly of individual components. Fuse holder accepts either single or double American or European fuses for maximum versatility (not interchangeable). Fuse connections are externally accessible & isolated from power connections. Rated 10 Amp., 250 VAC, 70°C to 120°C. Single or double pole snap action On/Off switch designed to withstand 80 amp. inrush current. Terminal connections are solder lug or quick connect. 42R37 meets all international safety requirements. | 42R37 Snap-in |
||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specifications | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||

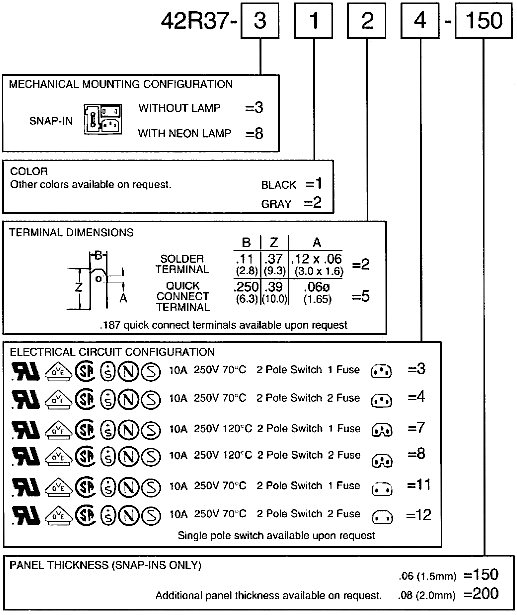

Example & Ordering Code | |||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||

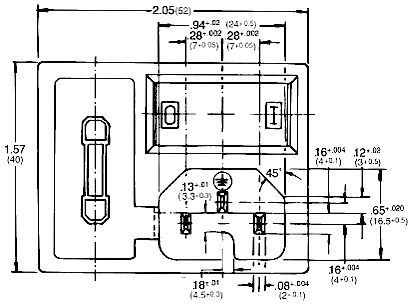

Specifications subject to change without notice. (Metric dimensions are shown in parentheses.) |
Part Numbers
42R37-3123-150
42R37-3123-200
42R37-3124-150
42R37-3124-200
42R37-3127-150
42R37-3127-200
42R37-3128-150
42R37-3128-200
42R37-31211-150
42R37-31211-200
42R37-31212-150
42R37-31212-200
42R37-3153-150
42R37-3153-200
42R37-3154-150
42R37-3154-200
42R37-3157-150
42R37-3157-200
42R37-3158-150
42R37-3158-200
42R37-31511-150
42R37-31511-200
42R37-31512-150
42R37-31512-200
42R37-3223-150
42R37-3223-200
42R37-3224-150
42R37-3224-200
42R37-3227-150
42R37-3227-200
42R37-3228-150
42R37-3228-200
42R37-32211-150
42R37-32211-200
42R37-32212-150
42R37-32212-200
42R37-3253-150
42R37-3253-200
42R37-3254-150
42R37-3254-200
42R37-3257-150
42R37-3257-200
42R37-3258-150
42R37-3258-200
42R37-32511-150
42R37-32511-200
42R37-32512-150
42R37-32512-200
42R37-8123-150
42R37-8123-200
42R37-8124-150
42R37-8124-200
42R37-8127-150
42R37-8127-200
42R37-8128-150
42R37-8128-200
42R37-81211-150
42R37-81211-200
42R37-81212-150
42R37-81212-200
42R37-8153-150
42R37-8153-200
42R37-8154-150
42R37-8154-200
42R37-8157-150
42R37-8157-200
42R37-8158-150
42R37-8158-200
42R37-81511-150
42R37-81511-200
42R37-81512-150
42R37-81512-200
42R37-8223-150
42R37-8223-200
42R37-8224-150
42R37-8224-200
42R37-8227-150
42R37-8227-200
42R37-8228-150
42R37-8228-200
42R37-82211-150
42R37-82211-200
42R37-82212-150
42R37-82212-200
42R37-8253-150
42R37-8253-200
42R37-8254-150
42R37-8254-200
42R37-8257-150
42R37-8257-200
42R37-8258-150
42R37-8258-200
42R37-82511-150
42R37-82511-200
42R37-82512-150
42R37-82512-200
