Power Dynamics, Inc.


Back Side
Screw Terminals
42R31 Series
Side Flange
42R31-1

Cross Flange
42R31-2

Snap-In
42R31-3

Combination single fuse holder/power cord connector for domestic & international markets. Fuse holder is touch proof in accordance with international safety requirements. Accommodates one international 5 x 20mm fuse with space for a spare fuse. Screw terminal connections. Rated 10 Amp., 250 VAC, 70°C to 120°C operating temperature. Fuse connections are externally accessible and isolated from power connections. Screw or snap-in mount and three mounting configurations.

Specifications
Material and Finish:
Housing:
Material:Polycarbonate
Rating:UL 94V-0
Contacts:
Material:Brass
Plating:Nickel
Electrical Specifications
Insulation Resistance:100 Megaohm min. @ 500 VDC
Dielectric Strength:2000 VAC for 1 minute

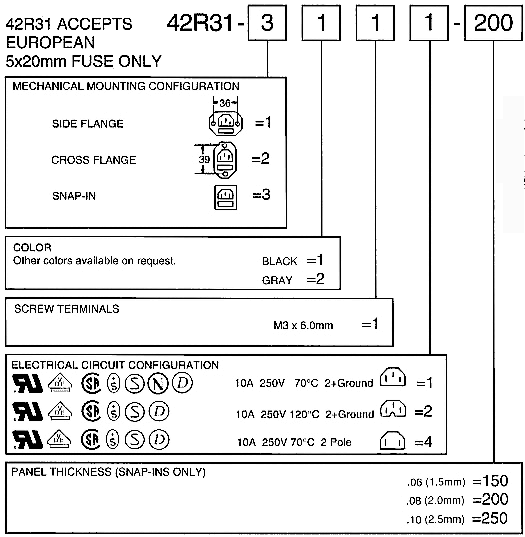

Example & Ordering Code

Cross Setion

Side View
Cross Section

Specifications subject to change without notice. (Metric dimensions are shown in parentheses.)

Part Numbers
42R31-1111
42R31-1112
42R31-1113
42R31-1211
42R31-1212
42R31-1213
42R31-2111
42R31-2112
42R31-2113
42R31-2211
42R31-2212
42R31-2213
42R31-3111-150
42R31-3111-200
42R31-3111-250
42R31-3112-150
42R31-3112-200
42R31-3112-250
42R31-3113-150
42R31-3113-200
42R31-3113-250
42R31-3211-150
42R31-3211-200
42R31-3211-250
42R31-3212-150
42R31-3212-200
42R31-3212-250
42R31-3213-150
42R31-3213-200
42R31-3213-250
