980/981 SERIES
Die cast is nickel plated for over 70 dB shielding.
Designed exclusively for use with a standard 15 pos D-Sub
  connector, which allows the use of special hardware to meet
  ethernet standards.
Available in straight (top) or right angle ( 90 degree) cable
Conductive grommet/strain relief supplied to enhance
  shielding and provide proper strain relief (sold separately).
Slide locks and posts must be purchased separately.

Die Cast Zinc Alloy Ingot.
Nickel plated.
Hardware: Nickel plated steel.

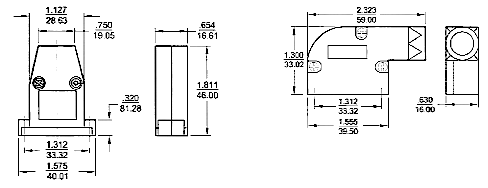

Ethernet Backshells
Die cast

980 Ethernet Straight
Backshell Kit Includes:
981 Ethernet Right Angle
Backshell Kit Includes:
(2) Backshell Halves (2) Backshell Halves
(2) Housing Screws (3) Housing Screws
(2) Housing Nuts

Ordering Information
Position Part Numbers
Die Cast
Die Cast
Right Angle
15 Kit 980-015-030-121 981-015-030-121
