975 SERIES | |
---|---|
FEATURES: Available in 4 industry sizes/positions (9, 15, 25, 37). 3-Way cable entry allows choice of entry options or use of multiple cable entries. Thumbscrews provided with backshell. Fully tapped assembly holes allow easy assembly, keeping manufacturing cost down. Perimeter sealing lips for secure assembly. 9 position has top cable entry only. MATERIALS: Metalized Plastic: High temperature plastic U.L. 94V-O. Plating: Nickel over copper. Plastic: High temperature plastic U.L. 94V-2 (Black). Hardware(all): Nickel plated steel. |
3-Way Entry Backshell Metalized Plastic, Plastic |
BACKSHELL KIT INCLUDES: (2) Backshell Halves (2) 4-40 Thumbscrews (2) Housing Screws (1) Strain Relief Clamp (2) Strain Relief Screws (2) Cable Slot Shut-Offs |

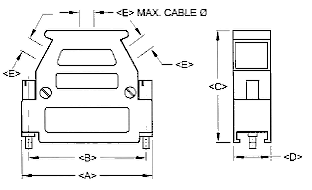

Ordering Information | ||||||||
---|---|---|---|---|---|---|---|---|
Position | Part Numbers | Dimensions | ||||||
Metalized Plastic | Plastic | A | B | C | D | E | ||
9 | Kit | 975-009-020-121 | 975-009-010-011 | 1.213 | .984 | 1.800 | .600 | .300 |
Bulk | 975-009-020-122 | 975-009-010-012 | 30.81 | 24.99 | 45.72 | 15.24 | 7.62 | |
15 | Kit | 975-015-020-121 | 975-015-010-011 | 1.541 | 1.312 | 1.800 | .600 | .335 |
Bulk | 975-015-020-122 | 975-015-010-012 | 39.14 | 33.32 | 45.72 | 15.24 | 8.51 | |
25 | Kit | 975-025-020-121 | 975-025-010-011 | 2.088 | 1.852 | 1.800 | .600 | .375 |
Bulk | 975-025-020-122 | 975-025-010-012 | 53.04 | 47.04 | 45.72 | 15.24 | 9.53 | |
37 | Kit | 975-037-020-121 | 975-037-010-011 | 2.735 | 2.500 | 1.800 | .600 | .400 |
Bulk | 975-037-020-122 | 975-037-010-012 | 69.47 | 63.50 | 45.72 | 15.24 | 10.16 |
