NorComp



480 SERIES
FEATURES:
Available in 4 industry sizes/positions (9, 15, 25,
  37).
Available in standard .590" footprint.
Individual filtering of each pin.
Tin Shells.
Sealed metal rear side.
Tin plated plug shells have indents to provide
  grounding and additional retention.
Standard capacitor value of 1000 pf. (others
  available, consult Beckwith Electronics)
Rated current: 5 amps DC max.

MATERIALS:
Shell: Steel, tin plated.
Insulator: Glass-filled thermoplastic. U.L. rated
  94V-0.
Machined Contacts:
  Male - Brass.
  Female - Phosphor bronze.
Plating: Gold flash on entire contact.

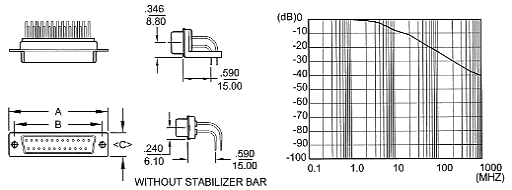

  (Contact Beckwith Electronics for other plating options).		 Right Angle D-Sub Filtered Connector
(.590" Footprint)



Ordering Information
See hardware table for hardware options
Position Part Numbers Dimensions
Tin
Shell		 With Stablizer
Bar		 A B C
9 Male 480-009-112-001 480-009-112-581 1.204 .984 .494
Female 480-009-212-001 480-009-212-581 30.58 24.99 12.55
15 Male 480-015-112-001 480-015-112-581 1.535 1.312 .494
Female 480-015-212-001 480-015-212-581 38.98 33.32 12.55
25 Male 480-025-112-001 480-025-112-581 2.078 1.850 .494
Female 480-025-212-001 480-025-212-581 52.78 47.00 12.55
37 Male 480-037-112-001 480-037-112-581 2.724 2.500 .494
Female 480-037-212-001 480-037-212-XX1 69.18 63.50 12.55
