477 SERIES | |
---|---|
FEATURES: Available in 5 industry sizes/positions (9, 15, 25, 37, 50). Individual filtering of each pin. Tin shells. Sealed metal rear side. Tin plated plug shells have indents to provide grounding and additional retention. Standard capacitor value of 1000 pf. (others available, consult Beckwith Electronics). Rated current: 5 amps DC max. MATERIALS: Shell: Steel, tin plated. Insulator: Glass-filled thermoplastic. U.L. rated 94V-0. Machined Contacts: Male - Brass. Female - Phosphor bronze. Plating: Gold flash on entire contact. (Contact Beckwith Electronics for other plating options). |
Dip Soldered Filtered D-Sub Connector |
Ordering Information | ||||||
---|---|---|---|---|---|---|

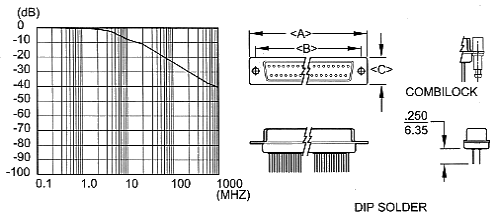

Position | Part Numbers | Dimensions | ||||
Tin Shell | With Combilock | A | B | C | ||
9 | Male | 477-009-112-001 | 477-009-112-311 | 1.204 | .984 | .494 |
Female | 477-009-212-001 | 477-009-212-311 | 30.58 | 24.99 | 12.55 | |
15 | Male | 477-015-112-001 | 477-015-112-311 | 1.535 | 1.312 | .494 |
Female | 477-015-212-001 | 477-015-212-311 | 38.98 | 33.32 | 12.55 | |
25 | Male | 477-025-112-001 | 477-025-112-311 | 2.078 | 1.850 | .494 |
Female | 477-025-212-001 | 477-025-212-311 | 52.78 | 47.00 | 12.55 | |
37 | Male | 477-037-112-001 | 477-037-112-311 | 2.724 | 2.500 | .494 |
Female | 477-037-212-001 | 477-037-212-311 | 69.18 | 63.50 | 12.55 | |
50 | Male | 477-050-112-001 | 477-050-112-311 | 2.622 | 2.405 | .605 |
Female | 477-050-212-001 | 477-050-212-311 | 66.59 | 61.08 | 15.37 |
